DMX CH | Parameter | Description |
1. | Intensity Main Source Ch.1 | Pixel 1 HaloLED 8 bit dimmer 0 – 100% |
2. | Intensity Main Source Ch.2 | Pixel 2 HaloLED 8 bit dimmer 0 – 100% |
3. | Intensity Main Source Ch.3 | Pixel 3 HaloLED 8 bit dimmer 0 – 100% |
4. | All Glow Red | Red glow 8 bit on all pixels 0 – 100% |
5. | All Glow Green | Green glow 8 bit on all pixels 0 – 100% |
6. | All glow Blue | Blue glow 8 bit on all pixels 0 – 100% |
7. | All glow White | White 8 bit on all glow pixels 0 – 100% |
8. | Strobe Main Source | HaloLED strobe channel |
9. | Strobe glow | Glow strobe channel |
DMX CH | Parameter | Description |
1. | Intensity Main Source Ch.1 | Pixel 1 HaloLED 8 bit dimmer 0 – 100% |
2. | Intensity Main Source Ch.2 | Pixel 2 HaloLED 8 bit dimmer 0 – 100% |
3. | Intensity Main Source Ch.3 | Pixel 3 HaloLED 8 bit dimmer 0 – 100% |
4. | Intensity Glow RGBW | RGBW Glow All pixels 8 bit dimmer 0 – 100% |
5. | All Glow Red | Red 8 bit on all glow pixels 0 – 100% |
6. | All Glow Green | Green 8 bit on all glow pixels 0 – 100% |
7. | All glow Blue | Blue 8 bit on all glow pixels 0 – 100% |
8. | All glow White | White 8 bit on all glow pixels 0 – 100% |
9. | Strobe Main Source | HaloLED strobe channel |
10. | Strobe Glow | Glow strobe channel |
11. | Colour wheel All Glow | Glow virtual colour wheel on all pixels |
12. | Intensity Macro | Macro 8 bit dimmer 0 – 100% |
13. | Macro | Macro select channel |
14. | Macro speed | Macro speed channel |
15. | Control | Fixture control channel |
DMX CH | Parameter | Description |
1. | Intensity Main Source Ch.1 | Pixel 1 HaloLED 8 bit dimmer 0 – 100% |
2. | Intensity Main Source Ch.2 | Pixel 2 HaloLED 8 bit dimmer 0 – 100% |
3. | Intensity Main Source Ch.3 | Pixel 3 HaloLED 8 bit dimmer 0 – 100% |
4. | Ch.1 and 2 Glow Red | Red 8 bit on glow pixels 1 and 2 0 – 100% |
5. | Ch.1 and 2 Glow Green | Green 8 bit on glow pixels 1 and 2 0 – 100% |
6. | Ch.1 and 2 glow Blue | Blue 8 bit on glow pixels 1 and 2 0 – 100% |
7. | Ch.1 and 2 glow White | White 8 bit on glow pixels 1 and 2 0 – 100% |
8. | Ch.3 and 4 Glow Red | Red 8 bit on glow pixels 3 and 4 0 – 100% |
9. | Ch.3 and 4 Glow Green | Green 8 bit on glow pixels 3 and 4 0 – 100% |
10. | Ch.3 and 4 glow Blue | Blue 8 bit on glow pixels 3 and 4 0 – 100% |
11. | Ch.3 and 4 glow White | White 8 bit on glow pixels 3 and 4 0 – 100% |
12. | Ch.5 and 6 Glow Red | Red 8 bit on glow pixels 5 and 6 0 – 100% |
13. | Ch.5 and 6 Glow Green | Green 8 bit on glow pixels 5 and 6 0 – 100% |
14. | Ch.5 and 6 glow Blue | Blue 8 bit on glow pixels 5 and 6 0 – 100% |
15. | Ch.5 and 6 glow White | White 8 bit on glow pixels 5 and 6 0 – 100% |
16. | Strobe Main Source | HaloLED strobe channel |
17. | Strobe Glow | Glow strobe channel |
18. | Colour wheel All Glow | Glow virtual colour wheel on all pixels |
19. | Intensity Macro | Macro 8 bit dimmer 0 – 100% |
20. | Macro | Macro select channel |
21. | Macro speed | Macro speed channel |
22. | Control | Fixture control channel |
DMX CH | Parameter | Description |
1. | Intensity Main Source Ch.1 | Pixel 1 HaloLED 8 bit dimmer 0 – 100% |
2. | Intensity Main Source Ch.1 fine | Pixel 1 HaloLED 16 bit dimmer 0 – 100% |
3. | Intensity Main Source Ch.2 | Pixel 2 HaloLED 8 bit dimmer 0 – 100% |
4. | Intensity Main Source Ch.2 fine | Pixel 2 HaloLED 16 bit dimmer 0 – 100% |
5. | Intensity Main Source Ch.3 | Pixel 3 HaloLED 8 bit dimmer 0 – 100% |
6. | Intensity Main Source Ch.3 fine | Pixel 3 HaloLED 16 bit dimmer 0 – 100% |
7. | Ch.1 and 2 Glow Red | Red 8 bit on glow pixels 1 and 2 0 – 100% |
8. | Ch.1 and 2 Glow Red fine | Red 16 bit on glow pixels 1 and 2 0 – 100% |
9. | Ch.1 and 2 Glow Green | Green 8 bit on glow pixels 1 and 2 0 – 100% |
10. | Ch.1 and 2 Glow Green fine | Green 16 bit on glow pixels 1 and 2 0 – 100% |
11. | Ch.1 and 2 glow Blue | Blue 8 bit on glow pixels 1 and 2 0 – 100% |
12. | Ch.1 and 2 glow Blue fine | Blue 16 bit on glow pixels 1 and 2 0 – 100% |
13. | Ch.1 and 2 glow White | White 8 bit on glow pixels 1 and 2 0 – 100% |
14. | Ch.1 and 2 glow White fine | White 16 bit on glow pixels 1 and 2 0 – 100% |
15. | Ch.3 and 4 Glow Red | Red 8 bit on glow pixels 3 and 4 0 – 100% |
16. | Ch.3 and 4 Glow Red fine | Red 16 bit on glow pixels 3 and 4 0 – 100% |
17. | Ch.3 and 4 Glow Green | Green 8 bit on glow pixels 3 and 4 0 – 100% |
18. | Ch.3 and 4 Glow Green fine | Green 16 bit on glow pixels 3 and 4 0 – 100% |
19. | Ch.3 and 4 glow Blue | Blue 8 bit on glow pixels 3 and 4 0 – 100% |
20. | Ch.3 and 4 glow Blue fine | Blue 16 bit on glow pixels 3 and 4 0 – 100% |
21. | Ch.3 and 4 glow White | White 8 bit on glow pixels 3 and 4 0 – 100% |
22. | Ch.3 and 4 glow White fine | White 16 bit on glow pixels 3 and 4 0 – 100% |
23. | Ch.5 and 6 Glow Red | Red 8 bit on glow pixels 5 and 6 0 – 100% |
24. | Ch.5 and 6 Glow Red fine | Red 16 bit on glow pixels 5 and 6 0 – 100% |
25. | Ch.5 and 6 Glow Green | Green 8 bit on glow pixels 5 and 6 0 – 100% |
26. | Ch.5 and 6 Glow Green fine | Green 16 bit on glow pixels 5 and 6 0 – 100% |
27. | Ch.5 and 6 glow Blue | Blue 8 bit on glow pixels 5 and 6 0 – 100% |
28. | Ch.5 and 6 glow Blue fine | Blue 16 bit on glow pixels 5 and 6 0 – 100% |
29. | Ch.5 and 6 glow White | White 8 bit on glow pixels 5 and 6 0 – 100% |
30. | Ch.5 and 6 glow White fine | White 16 bit on glow pixels 5 and 6 0 – 100% |
31. | Strobe Main Source | HaloLED strobe channel |
32. | Strobe Glow | Glow strobe channel |
33. | Colour wheel All Glow | Glow virtual colour wheel on all pixels |
34. | Intensity Macro | Macro 8 bit dimmer 0 – 100% |
35. | Macro | Macro select channel |
36. | Macro speed | Macro speed channel |
37. | Control | Fixture control channel |

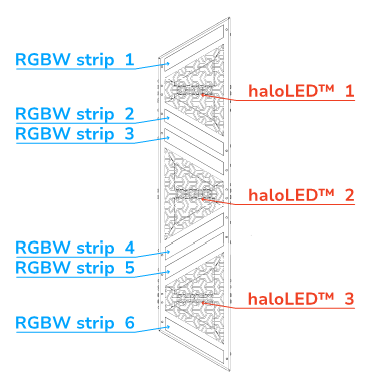

DMX CH | Parameter | Description |
1. | Ch.1 Glow Red | Red 8 bit on glow pixel 1 0 – 100% |
2. | Ch.1 Glow Green | Green 8 bit on glow pixel 1 0 – 100% |
3. | Ch.1 Glow Blue | Blue 8 bit on glow pixel 1 0 – 100% |
4. | Ch.1 Glow White | White 8 bit on glow pixel 1 0 – 100% |
5. | Intensity Main Source Ch.1 | Pixel 1 HaloLED 8 bit dimmer 0 – 100% |
6. | Ch.2 Glow Red | Red 8 bit on glow pixel 2 0 – 100% |
7. | Ch.2 Glow Green | Green 8 bit on glow pixel 2 0 – 100% |
8. | Ch.2 Glow Blue | Blue 8 bit on glow pixel 2 0 – 100% |
9. | Ch.2 Glow White | White 8 bit on glow pixel 2 0 – 100% |
10. | Ch.3 Glow Red | Red 8 bit on glow pixel 3 0 – 100% |
11. | Ch.3 Glow Green | Green 8 bit on glow pixel 3 0 – 100% |
12. | Ch.3 glow Blue | Blue 8 bit on glow pixel 3 0 – 100% |
13. | Ch.3 glow White | White 8 bit on glow pixel 3 0 – 100% |
14. | Intensity Main Source Ch.2 | Pixel 2 HaloLED 8 bit dimmer 0 – 100% |
15. | Ch.4 Glow Red | Red 8 bit on glow pixel 4 0 – 100% |
16. | Ch.4 Glow Green | Green 8 bit on glow pixel 4 0 – 100% |
17. | Ch.4 Glow Blue | Blue 8 bit on glow pixel 4 0 – 100% |
18. | Ch.4 Glow White | White 8 bit on glow pixel 4 0 – 100% |
19. | Ch.5 Glow Red | Red 8 bit on glow pixel 5 0 – 100% |
20. | Ch.5 Glow Green | Green 8 bit on glow pixel 5 0 – 100% |
21. | Ch.5 Glow Blue | Blue 8 bit on glow pixel 5 0 – 100% |
22. | Ch.5 Glow White | White 8 bit on glow pixel 5 0 – 100% |
23. | Intensity Main Source Ch.3 | Pixel 3 HaloLED 8 bit dimmer 0 – 100% |
24. | Ch.6 Glow Red | Red 8 bit on glow pixel 6 0 – 100% |
25. | Ch.6 Glow Green | Green 8 bit on glow pixel 6 0 – 100% |
26. | Ch.6 glow Blue | Blue 8 bit on glow pixel 6 0 – 100% |
27. | Ch.6 glow White | White 8 bit on glow pixel 6 0 – 100% |
28. | Strobe Main Source | HaloLED strobe channel |
29. | Strobe Glow | Glow strobe channel |
30. | Colour wheel All Glow | Glow virtual colour wheel on all pixels |
31. | Intensity Macro | Macro 8 bit dimmer 0 – 100% |
32. | Macro | Macro select channel |
33. | Macro speed | Macro speed channel |
34. | Control | Fixture control channel |
DMX CH | Parameter | Description |
1. | Ch.1 Glow Red | Red 8 bit on glow pixel 1 0 – 100% |
2. | Ch.1 Glow Red fine | Red 16 bit on glow pixel 1 0 – 100% |
3. | Ch.1 Glow Green | Green 8 bit on glow pixel 1 0 – 100% |
4. | Ch.1 Glow Green fine | Green 16 bit on glow pixel 1 0 – 100% |
5. | Ch.1 Glow Blue | Blue 8 bit on glow pixel 1 0 – 100% |
6. | Ch.1 Glow Blue fine | Blue 16 bit on glow pixel 1 0 – 100% |
7. | Ch.1 Glow White | White 8 bit on glow pixel 1 0 – 100% |
8. | Ch.1 Glow White fine | White 16 bit on glow pixel 1 0 – 100% |
9. | Intensity Main Source Ch.1 | Pixel 1 HaloLED 8 bit dimmer 0 – 100% |
10. | Intensity Main Source Ch.1 fine | Pixel 1 HaloLED 16 bit dimmer 0 – 100% |
11. | Ch.2 Glow Red | Red 8 bit on glow pixel 2 0 – 100% |
12. | Ch.2 Glow Red fine | Red 16 bit on glow pixel 2 0 – 100% |
13. | Ch.2 Glow Green | Green 8 bit on glow pixel 2 0 – 100% |
14. | Ch.2 Glow Green fine | Green 16 bit on glow pixel 2 0 – 100% |
15. | Ch.2 Glow Blue | Blue 8 bit on glow pixel 2 0 – 100% |
16. | Ch.2 Glow Blue fine | Blue 16 bit on glow pixel 2 0 – 100% |
17. | Ch.2 Glow White | White 8 bit on glow pixel 2 0 – 100% |
18. | Ch.2 Glow White fine | White 16 bit on glow pixel 2 0 – 100% |
19. | Ch.3 Glow Red | Red 8 bit on glow pixel 3 0 – 100% |
20. | Ch.3 Glow Red fine | Red 16 bit on glow pixel 3 0 – 100% |
21. | Ch.3 Glow Green | Green 8 bit on glow pixel 3 0 – 100% |
22. | Ch.3 Glow Green fine | Green 16 bit on glow pixel 3 0 – 100% |
23. | Ch.3 glow Blue | Blue 8 bit on glow pixel 3 0 – 100% |
24. | Ch.3 Glow Blue fine | Blue 16 bit on glow pixel 3 0 – 100% |
25. | Ch.3 glow White | White 8 bit on glow pixel 3 0 – 100% |
26. | Ch.3 Glow White fine | White 16 bit on glow pixel 3 0 – 100% |
27. | Intensity Main Source Ch.2 | Pixel 2 HaloLED 8 bit dimmer 0 – 100% |
28. | Intensity Main Source Ch.2 fine | Pixel 2 HaloLED 16 bit dimmer 0 – 100% |
29. | Ch.4 Glow Red | Red 8 bit on glow pixel 4 0 – 100% |
30. | Ch.4 Glow Red fine | Red 16 bit on glow pixel 4 0 – 100% |
31. | Ch.4 Glow Green | Green 8 bit on glow pixel 4 0 – 100% |
32. | Ch.4 Glow Green fine | Green 16 bit on glow pixel 4 0 – 100% |
33. | Ch.4 Glow Blue | Blue 8 bit on glow pixel 4 0 – 100% |
34. | Ch.4 Glow Blue fine | Blue 16 bit on glow pixel 4 0 – 100% |
35. | Ch.4 Glow White | White 8 bit on glow pixel 4 0 – 100% |
36. | Ch.4 Glow White fine | White 16 bit on glow pixel 4 0 – 100% |
37. | Ch.5 Glow Red | Red 8 bit on glow pixel 5 0 – 100% |
38. | Ch.5 Glow Red fine | Red 16 bit on glow pixel 5 0 – 100% |
39. | Ch.5 Glow Green | Green 8 bit on glow pixel 5 0 – 100% |
40. | Ch.5 Glow Green fine | Green 16 bit on glow pixel 5 0 – 100% |
41. | Ch.5 Glow Blue | Blue 8 bit on glow pixel 5 0 – 100% |
42. | Ch.5 Glow Blue fine | Blue 16 bit on glow pixel 5 0 – 100% |
43. | Ch.5 Glow White | White 8 bit on glow pixel 5 0 – 100% |
44. | Ch.5 Glow White fine | White 16 bit on glow pixel 5 0 – 100% |
45. | Intensity Main Source Ch.3 | Pixel 3 HaloLED 8 bit dimmer 0 – 100% |
46. | Intensity Main Source Ch.3 fine | Pixel 3 HaloLED 16 bit dimmer 0 – 100% |
47. | Ch.6 Glow Red | Red 8 bit on glow pixel 6 0 – 100% |
48. | Ch.6 Glow Red fine | Red 16 bit on glow pixel 6 0 – 100% |
49. | Ch.6 Glow Green | Green 8 bit on glow pixel 6 0 – 100% |
50. | Ch.6 Glow Green fine | Green 16 bit on glow pixel 6 0 – 100% |
51. | Ch.6 glow Blue | Blue 8 bit on glow pixel 6 0 – 100% |
52. | Ch.6 Glow Blue fine | Blue 16 bit on glow pixel 6 0 – 100% |
53. | Ch.6 glow White | White 8 bit on glow pixel 6 0 – 100% |
54. | Ch.6 Glow White fine | White 16 bit on glow pixel 6 0 – 100% |
55. | Strobe Main Source | HaloLED strobe channel |
56. | Strobe Glow | Glow strobe channel |
57. | Colour wheel All Glow | Glow virtual colour wheel on all pixels |
58. | Intensity Macro | Macro 8 bit dimmer 0 – 100% |
59. | Macro | Macro select channel |
60. | Macro speed | Macro speed channel |
61. | Control | Fixture control channel |
DMX Value | Function | Control type |
0-9 | Strobe open | constant |
10 - 19 | Strobe closed | constant |
20 - 121 | Strobe with growing frequency 0,5 Hz - 30 Hz | linear |
122 - 129 | Strobe open | constant |
130 - 245 | Random strobe with growing frequency | linear |
246 - 255 | Strobe open | constant |
DMX Value | Function | Control type |
0-9 | Strobe open | constant |
10 - 19 | Strobe closed | constant |
20 - 121 | Strobe with growing frequency 0,5 Hz - 30 Hz | linear |
122 - 129 | Strobe open | constant |
130 - 245 | Random strobe with growing frequency | linear |
246 - 255 | Strobe open | constant |
DMX Value | Function | Control type |
0-9 | Strobe open | constant |
10 - 19 | Strobe closed | constant |
20 - 121 | Strobe with growing frequency 0,5 Hz - 30 Hz | linear |
122 - 129 | Strobe open | constant |
130 - 245 | Random strobe with growing frequency | linear |
246 - 255 | Strobe open | constant |
DMX value | Function | Control type | ||
0 - 9 | Virtual color wheel open | constant | ||
10 - 39 | White | constant | ||
40 - 237 | Virtual color wheel engaged | linear | ||
RED | GREEN | BLUE | ||
40 | 255 | 0 | 0 | |
41 | 255 | 8 | 0 | |
42 | 255 | 16 | 0 | |
43 | 255 | 24 | 0 | |
44 | 255 | 32 | 0 | |
45 | 255 | 40 | 0 | |
46 | 255 | 48 | 0 | |
47 | 255 | 56 | 0 | |
48 | 255 | 64 | 0 | |
49 | 255 | 72 | 0 | |
50 | 255 | 80 | 0 | |
51 | 255 | 88 | 0 | |
52 | 255 | 96 | 0 | |
53 | 255 | 104 | 0 | |
54 | 255 | 112 | 0 | |
55 | 255 | 120 | 0 | |
56 | 255 | 128 | 0 | |
57 | 255 | 136 | 0 | |
58 | 255 | 144 | 0 | |
59 | 255 | 152 | 0 | |
60 | 255 | 160 | 0 | |
61 | 255 | 168 | 0 | |
62 | 255 | 176 | 0 | |
63 | 255 | 184 | 0 | |
64 | 255 | 192 | 0 | |
65 | 255 | 200 | 0 | |
66 | 255 | 208 | 0 | |
67 | 255 | 216 | 0 | |
68 | 255 | 224 | 0 | |
69 | 255 | 232 | 0 | |
70 | 255 | 240 | 0 | |
71 | 255 | 248 | 0 | |
72 | 255 | 255 | 0 | |
73 | 247 | 255 | 0 | |
74 | 239 | 255 | 0 | |
75 | 231 | 255 | 0 | |
76 | 223 | 255 | 0 | |
77 | 215 | 255 | 0 | |
78 | 207 | 255 | 0 | |
79 | 199 | 255 | 0 | |
80 | 191 | 255 | 0 | |
81 | 183 | 255 | 0 | |
82 | 175 | 255 | 0 | |
83 | 167 | 255 | 0 | |
84 | 159 | 255 | 0 | |
85 | 151 | 255 | 0 | |
86 | 143 | 255 | 0 | |
87 | 135 | 255 | 0 | |
88 | 127 | 255 | 0 | |
89 | 119 | 255 | 0 | |
90 | 111 | 255 | 0 | |
91 | 103 | 255 | 0 | |
92 | 95 | 255 | 0 | |
93 | 87 | 255 | 0 | |
94 | 79 | 255 | 0 | |
95 | 71 | 255 | 0 | |
96 | 63 | 255 | 0 | |
97 | 55 | 255 | 0 | |
98 | 47 | 255 | 0 | |
99 | 39 | 255 | 0 | |
100 | 31 | 255 | 0 | |
101 | 23 | 255 | 0 | |
102 | 15 | 255 | 0 | |
103 | 7 | 255 | 0 | |
104 | 0 | 255 | 0 | |
105 | 0 | 255 | 7 | |
106 | 0 | 255 | 14 | |
107 | 0 | 255 | 21 | |
108 | 0 | 255 | 28 | |
109 | 0 | 255 | 35 | |
110 | 0 | 255 | 42 | |
111 | 0 | 255 | 49 | |
112 | 0 | 255 | 56 | |
113 | 0 | 255 | 63 | |
114 | 0 | 255 | 70 | |
115 | 0 | 255 | 77 | |
116 | 0 | 255 | 84 | |
117 | 0 | 255 | 91 | |
118 | 0 | 255 | 98 | |
119 | 0 | 255 | 105 | |
120 | 0 | 255 | 112 | |
121 | 0 | 255 | 119 | |
122 | 0 | 255 | 126 | |
123 | 0 | 255 | 133 | |
124 | 0 | 255 | 140 | |
125 | 0 | 255 | 147 | |
126 | 0 | 255 | 154 | |
127 | 0 | 255 | 161 | |
128 | 0 | 255 | 168 | |
129 | 0 | 255 | 175 | |
130 | 0 | 255 | 182 | |
131 | 0 | 255 | 189 | |
132 | 0 | 255 | 196 | |
133 | 0 | 255 | 203 | |
134 | 0 | 255 | 210 | |
135 | 0 | 255 | 217 | |
136 | 0 | 255 | 224 | |
137 | 0 | 255 | 231 | |
138 | 0 | 255 | 238 | |
139 | 0 | 255 | 245 | |
140 | 0 | 255 | 252 | |
141 | 0 | 255 | 255 | |
142 | 0 | 247 | 255 | |
143 | 0 | 239 | 255 | |
144 | 0 | 231 | 255 | |
145 | 0 | 223 | 255 | |
146 | 0 | 215 | 255 | |
147 | 0 | 207 | 255 | |
148 | 0 | 199 | 255 | |
149 | 0 | 191 | 255 | |
150 | 0 | 183 | 255 | |
151 | 0 | 175 | 255 | |
152 | 0 | 167 | 255 | |
153 | 0 | 159 | 255 | |
154 | 0 | 151 | 255 | |
155 | 0 | 143 | 255 | |
156 | 0 | 135 | 255 | |
157 | 0 | 127 | 255 | |
158 | 0 | 119 | 255 | |
159 | 0 | 111 | 255 | |
160 | 0 | 103 | 255 | |
161 | 0 | 95 | 255 | |
162 | 0 | 87 | 255 | |
163 | 0 | 79 | 255 | |
164 | 0 | 71 | 255 | |
165 | 0 | 63 | 255 | |
166 | 0 | 55 | 255 | |
167 | 0 | 47 | 255 | |
168 | 0 | 39 | 255 | |
169 | 0 | 31 | 255 | |
170 | 0 | 23 | 255 | |
171 | 0 | 15 | 255 | |
172 | 0 | 7 | 255 | |
173 | 0 | 0 | 255 | |
174 | 8 | 0 | 255 | |
175 | 16 | 0 | 255 | |
176 | 24 | 0 | 255 | |
177 | 32 | 0 | 255 | |
178 | 40 | 0 | 255 | |
179 | 48 | 0 | 255 | |
180 | 56 | 0 | 255 | |
181 | 64 | 0 | 255 | |
182 | 72 | 0 | 255 | |
183 | 80 | 0 | 255 | |
184 | 88 | 0 | 255 | |
185 | 96 | 0 | 255 | |
186 | 104 | 0 | 255 | |
187 | 112 | 0 | 255 | |
188 | 120 | 0 | 255 | |
189 | 128 | 0 | 255 | |
190 | 136 | 0 | 255 | |
191 | 144 | 0 | 255 | |
192 | 152 | 0 | 255 | |
193 | 160 | 0 | 255 | |
194 | 168 | 0 | 255 | |
195 | 176 | 0 | 255 | |
196 | 184 | 0 | 255 | |
197 | 192 | 0 | 255 | |
198 | 200 | 0 | 255 | |
199 | 208 | 0 | 255 | |
200 | 216 | 0 | 255 | |
201 | 224 | 0 | 255 | |
202 | 232 | 0 | 255 | |
203 | 240 | 0 | 255 | |
204 | 248 | 0 | 255 | |
205 | 255 | 0 | 255 | |
206 | 255 | 0 | 247 | |
207 | 255 | 0 | 239 | |
208 | 255 | 0 | 231 | |
209 | 255 | 0 | 223 | |
210 | 255 | 0 | 215 | |
211 | 255 | 0 | 207 | |
212 | 255 | 0 | 199 | |
213 | 255 | 0 | 191 | |
214 | 255 | 0 | 183 | |
215 | 255 | 0 | 175 | |
216 | 255 | 0 | 167 | |
217 | 255 | 0 | 159 | |
218 | 255 | 0 | 151 | |
219 | 255 | 0 | 143 | |
220 | 255 | 0 | 135 | |
221 | 255 | 0 | 127 | |
222 | 255 | 0 | 119 | |
223 | 255 | 0 | 111 | |
224 | 255 | 0 | 103 | |
225 | 255 | 0 | 95 | |
226 | 255 | 0 | 87 | |
227 | 255 | 0 | 79 | |
228 | 255 | 0 | 71 | |
229 | 255 | 0 | 63 | |
230 | 255 | 0 | 55 | |
231 | 255 | 0 | 47 | |
232 | 255 | 0 | 39 | |
233 | 255 | 0 | 31 | |
234 | 255 | 0 | 23 | |
235 | 255 | 0 | 15 | |
236 | 255 | 0 | 7 | |
237 | 255 | 0 | 0 | |
238 - 254 | Color spinning | linear | ||
255 | Virtual color wheel open | constant |
DMX Value | Function | Control type |
0 | Macro off | constant |
1 - 3 | Macro 1 | constant |
4 - 7 | Macro 2 | constant |
8 - 11 | Macro 3 | constant |
12 - 15 | Macro 4 | constant |
16 - 19 | Macro 5 | constant |
20 - 23 | Macro 6 | constant |
24 - 27 | Macro 7 | constant |
28 - 31 | Macro 8 | constant |
32 - 35 | Macro 9 | constant |
36 - 39 | Macro 10 | constant |
40 - 43 | Macro 11 | constant |
44 - 47 | Macro 12 | constant |
48 - 51 | Macro 13 | constant |
52 - 55 | Macro 14 | constant |
56 - 59 | Macro 15 | constant |
60 - 63 | Macro 16 | constant |
64 - 67 | Macro 17 | constant |
68 - 71 | Macro 18 | constant |
72 - 75 | Macro 19 | constant |
76 - 79 | Macro 20 | constant |
80 - 83 | Macro 21 | constant |
84 - 87 | Macro 22 | constant |
88 - 91 | Macro 23 | constant |
92 - 95 | Macro 24 | constant |
96 - 99 | Macro 25 | constant |
100 - 103 | Macro 26 | constant |
104 - 107 | Macro 27 | constant |
108 - 111 | Macro 28 | constant |
112 - 115 | Macro 29 | constant |
116 - 119 | Macro 30 | constant |
120 - 123 | Macro 31 | constant |
124 - 127 | Macro 32 | constant |
128 - 131 | Macro 33 | constant |
132 - 135 | Macro 34 | constant |
136 - 139 | Macro 35 | constant |
140 - 143 | Macro 36 | constant |
144 - 147 | Macro 37 | constant |
148 - 151 | Macro 38 | constant |
152 - 155 | Macro 39 | constant |
156 - 159 | Macro 40 | constant |
160 - 163 | Macro 41 | constant |
164 - 167 | Macro 42 | constant |
168 - 171 | Macro 43 | constant |
172 - 175 | Macro 44 | constant |
176 - 179 | Macro 45 | constant |
180 - 183 | Macro 46 | constant |
184 - 187 | Macro 47 | constant |
188 - 191 | Macro 48 | constant |
192 - 195 | Macro 49 | constant |
196 - 199 | Macro 50 | constant |
200 - 203 | Macro 51 | constant |
204 - 207 | Macro 52 | constant |
208 - 211 | Macro 53 | constant |
212 - 215 | Macro 54 | constant |
216 - 219 | Macro 55 | constant |
220 - 223 | Macro 56 | constant |
224 - 227 | Macro 57 | constant |
228 - 231 | Macro 58 | constant |
232 - 235 | Macro 59 | constant |
236 - 239 | Macro 60 | constant |
240 - 243 | Macro 61 | constant |
244 - 247 | Macro 62 | constant |
248 - 251 | Macro 63 | constant |
252 - 255 | Macro 64 | constant |
DMX Value | Function | Control type |
0 - 30 | No function | constant |
31 - 40 | Flicker mode 1 | constant |
41 - 50 | Flicker mode 2 | constant |
51 – 60 | Flicker mode 3 | constant |
61 - 70 | Dimming curve linear | constant |
71 - 80 | Dimming curve logarithmic | constant |
81 – 245 | Reserved | constant |
246 - 255 | Default all values | constant |
Manufacturer ID | 01CCh |
Model ID | 00.10 |
Super Simple personality ID | 01 |
Simple personality ID | 02 |
Standard personality ID | 03 |
Standard Fine personality ID | 04 |
Pixel personality ID | 05 |
Pixel Fine personality ID | 06 |
Parameter ID | Operation supported |
DISC_UNIQUE_BRANCH | discovery |
DISC_MUTE | discovery |
DISC_UN_MUTE | discovery |
DEVICE_INFO | get |
SUPPORTED_PARAMETERS | get |
SOFTWARE_VERSION_LABEL | get |
DMX_START_ADDRESS | get and set |
IDENTIFY_DEVICE | get and set |
DEVICE_MODEL_DESCRIPTION | get |
MANUFACTURER_LABEL | get |
DEVICE_LABEL | get and set |
DMX_PERSONALITY | get and set |
DEVICE_HOURS | get |
