DMX CHART [P1 mini]

DMX CHART [P1 mini]

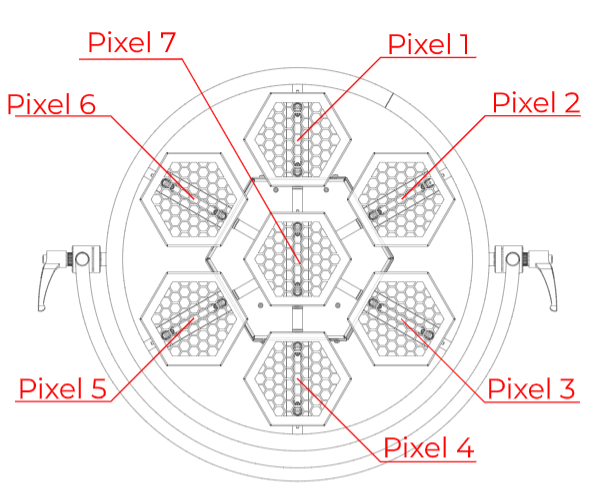

PIXEL ORDER

DMX MODES

Mode Simple

DMX channel Parameter Descripton
1.          Dimmer Main Source Ch. 1 Pixel 1 filament 8 bit dimmer 0 – 100%
2.         Dimmer Main Source Ch. 2 Pixel 2 filament 8 bit dimmer 0 – 100%
3.         Dimmer Main Source Ch. 3 Pixel 3 filament 8 bit dimmer 0 – 100%
4.         Dimmer Main Source Ch. 4 Pixel 4 filament 8 bit dimmer 0 – 100%
5.         Dimmer Main Source Ch. 5 Pixel 5 filament 8 bit dimmer 0 – 100%
6.         Dimmer Main Source Ch. 6 Pixel 6 filament 8 bit dimmer 0 – 100%
7.         Dimmer Main Source Ch. 7 Pixel 7 filament 8 bit dimmer 0 – 100%
8.         Red All glow Red glow 8 bit on all pixels
9.         Green All glow Green glow 8 bit on all pixels
10.        Blue All glow Blue glow 8 bit on all pixels
11.         White All glow White glow 8 bit on all pixels
12.        Dimmer glow All pixels glow 8 bit dimmer 0 – 100%
13.        Strobe glow Glow strobe channel
14.        Strobe Main Source Filaments strobe channel
15.        Color wheel All glow Glow virtual color wheel
16.        Macro Macro select channel
17.        Macro direction Macro direction channel
18.        Macro speed Macro speed channel
19.        Control Fixture control channel

Mode Standard

DMX channel Parameter Description
1.          Dimmer Main Source Ch. 1 Pixel 1 filament 8 bit dimmer 0 – 100%
2.         Dimmer Main Source Ch. 2 Pixel 2 filament 8 bit dimmer 0 – 100%
3.         Dimmer Main Source Ch. 3 Pixel 3 filament 8 bit dimmer 0 – 100%
4.         Dimmer Main Source Ch. 4 Pixel 4 filament 8 bit dimmer 0 – 100%
5.         Dimmer Main Source Ch. 5 Pixel 5 filament 8 bit dimmer 0 – 100%
6.         Dimmer Main Source Ch. 6 Pixel 6 filament 8 bit dimmer 0 – 100%
7.         Dimmer Main Source Ch. 7 Pixel 7 filament 8 bit dimmer 0 – 100%
8.         Red 1 glow Pixel 1 Red 8 bit
9.         Green 1 glow Pixel 1 Green 8 bit
10.        Blue 1 glow Pixel 1 Blue 8 bit
11.         White 1 glow Pixel 1 White 8 bit
12.        Red 2 glow Pixel 2 Red 8 bit
13.        Green 2 glow Pixel 2 Green 8 bit
14.        Blue 2 glow Pixel 2 Blue 8 bit
15.        White 2 glow Pixel 2 White 8 bit
16.        Red 3 glow Pixel 3 Red 8 bit
17.        Green 3 glow Pixel 3 Green 8 bit
18.        Blue 3 glow Pixel 3 Blue 8 bit
19.        White 3 glow Pixel 3 White 8 bit
20.       Red 4 glow Pixel 4 Red 8 bit
21.        Green 4 glow Pixel 4 Green 8 bit
22.       Blue 4 glow Pixel 4 Blue 8 bit
23.       White 4 glow Pixel 4 White 8 bit
24.       Red 5 glow Pixel 5 Red 8 bit
25.       Green 5 glow Pixel 5 Green 8 bit
26.       Blue 5 glow Pixel 5 Blue 8 bit
27.       White 5 glow Pixel 5 White 8 bit
28.       Red 6 glow Pixel 6 Red 8 bit
29.       Green 6 glow Pixel 6 Green 8 bit
30.       Blue 6 glow Pixel 6 Blue 8 bit
31.        White 6 glow Pixel 6 White 8 bit
32.       Red 7 glow Pixel 7 Red 8 bit
33.       Green 7 glow Pixel 7 Green 8 bit
34.       Blue 7 glow Pixel 7 Blue 8 bit
35.       White 7 glow Pixel 7 White 8 bit
36.       Dimmer glow All pixels glow 8 bit dimmer 0 – 100%
37.       Strobe glow Glow strobe channel
38.       Strobe Main Source Filaments strobe channel
39.       Color wheel All glow Glow virtual color wheel
40.      Macro Macro select channel
41.        Macro direction Macro direction channel
42.       Macro speed Macro speed channel
43.       Control Fixture control channel

Mode Standard Fine

DMX channel Parameter Description
1.          Dimmer Main Source Ch. 1 Pixel 1 filament 8 bit dimmer 0 – 100%
2.         Dimmer Main Source Ch. 1 fine Pixel 1 filament 16 bit dimmer 0 – 100%
3.         Dimmer Main Source Ch. 2 Pixel 2 filament 8 bit dimmer 0 – 100%
4.         Dimmer Main Source Ch. 2 fine Pixel 2 filament 16 bit dimmer 0 – 100%
5.         Dimmer Main Source Ch. 3  Pixel 3 filament 8 bit dimmer 0 – 100%
6.         Dimmer Main Source Ch. 3 fine Pixel 3 filament 16 bit dimmer 0 – 100%
7.         Dimmer Main Source Ch. 4 Pixel 4 filament 8 bit dimmer 0 – 100%
8.         Dimmer Main Source Ch. 4 fine Pixel 4 filament 16 bit dimmer 0 – 100%
9.         Dimmer Main Source Ch. 5 Pixel 5 filament 8 bit dimmer 0 – 100%
10.        Dimmer Main Source Ch. 5 fine Pixel 5 filament 16 bit dimmer 0 – 100%
11.         Dimmer Main Source Ch. 6 Pixel 6 filament 8 bit dimmer 0 – 100%
12.        Dimmer Main Source Ch. 6 fine Pixel 6 filament 16 bit dimmer 0 – 100%
13.        Dimmer Main Source Ch. 7 Pixel 7 filament 8 bit dimmer 0 – 100%
14.        Dimmer Main Source Ch. 7 fine Pixel 7 filament 16 bit dimmer 0 – 100%
15.        Red 1 glow Pixel 1 Red 8 bit
16.        Green 1 glow Pixel 1 Green 8 bit
17.        Blue 1 glow Pixel 1 Blue 8 bit
18.        White 1 glow Pixel 1 White 8 bit
19.        Red 2 glow Pixel 2 Red 8 bit
20.       Green 2 glow Pixel 2 Green 8 bit
21.        Blue 2 glow Pixel 2 Blue 8 bit
22.       White 2 glow Pixel 2 White 8 bit
23.       Red 3 glow Pixel 3 Red 8 bit
24.       Green 3 glow Pixel 3 Green 8 bit
25.       Blue 3 glow Pixel 3 Blue 8 bit
26.       White 3 glow Pixel 3 White 8 bit
27.       Red 4 glow Pixel 4 Red 8 bit
28.       Green 4 glow Pixel 4 Green 8 bit
29.       Blue 4 glow Pixel 4 Blue 8 bit
30.       White 4 glow Pixel 4 White 8 bit
31.        Red 5 glow Pixel 5 Red 8 bit
32.       Green 5 glow Pixel 5 Green 8 bit
33.       Blue 5 glow Pixel 5 Blue 8 bit
34.       White 5 glow Pixel 5 White 8 bit
35.       Red 6 glow Pixel 6 Red 8 bit
36.       Green 6 glow Pixel 6 Green 8 bit
37.       Blue 6 glow Pixel 6 Blue 8 bit
38.       White 6 glow Pixel 6 White 8 bit
39.       Red 7 glow Pixel 7 Red 8 bit
40.      Green 7 glow Pixel 7 Green 8 bit
41.        Blue 7 glow Pixel 7 Blue 8 bit
42.       White 7 glow Pixel 7 White 8 bit
43.       Dimmer glow All pixels glow 8 bit dimmer 0 – 100%
44.       Strobe glow Glow strobe channel
45.       Strobe Main Source Filaments strobe channel
46.       Color wheel All glow Glow virtual color wheel
47.       Macro Macro select channel
48.       Macro direction Macro direction channel
49.       Macro speed Macro speed channel
50.       Control Fixture control channel

Mode Pixel

DMX channel Parameter Description
1.          Dimmer Main Source Ch. 1 Pixel 1 filament 8 bit dimmer 0 – 100%
2.         Red 1 glow Pixel 1 Red 8 bit
3.         Green 1 glow Pixel 1 Green 8 bit
4.         Blue 1 glow Pixel 1 Blue 8 bit
5.         White 1 glow Pixel 1 White 8 bit
6.         Dimmer Main Source Ch. 2 Pixel 2 filament 8 bit dimmer 0 – 100%
7.         Red 2 glow Pixel 2 Red 8 bit
8.         Green 2 glow Pixel 2 Green 8 bit
9.         Blue 2 glow Pixel 2 Blue 8 bit
10.        White 2 glow Pixel 2 White 8 bit
11.         Dimmer Main Source Ch. 3 Pixel 3 filament 8 bit dimmer 0 – 100%
12.        Red 3 glow Pixel 3 Red 8 bit
13.        Green 3 glow Pixel 3 Green 8 bit
14.        Blue 3 glow Pixel 3 Blue 8 bit
15.        White 3 glow Pixel 3 White 8 bit
16.        Dimmer Main Source Ch. 4 Pixel 4 filament 8 bit dimmer 0 – 100%
17.        Red 4 glow Pixel 4 Red 8 bit
18.        Green 4 glow Pixel 4 Green 8 bit
19.        Blue 4 glow Pixel 4 Blue 8 bit
20.       White 4 glow Pixel 4 White 8 bit
21.        Dimmer Main Source Ch. 5 Pixel 5 filament 8 bit dimmer 0 – 100%
22.       Red 5 glow Pixel 5 Red 8 bit
23.       Green 5 glow Pixel 5 Green 8 bit
24.       Blue 5 glow Pixel 5 Blue 8 bit
25.       White 5 glow Pixel 5 White 8 bit
26.       Dimmer Main Source Ch. 6 Pixel 6 filament 8 bit dimmer 0 – 100%
27.       Red 6 glow Pixel 6 Red 8 bit
28.       Green 6 glow Pixel 6 Green 8 bit
29.       Blue 6 glow Pixel 6 Blue 8 bit
30.       White 6 glow Pixel 6 White 8 bit
31.        Dimmer Main Source Ch. 7 Pixel 7 filament 8 bit dimmer 0 – 100%
32.       Red 7 glow Pixel 7 Red 8 bit
33.       Green 7 glow Pixel 7 Green 8 bit
34.       Blue 7 glow Pixel 7 Blue 8 bit
35.       White 7 glow Pixel 7 White 8 bit
36.       Strobe glow Glow strobe channel
37.       Strobe Main Source Filaments strobe channel
38.       Color wheel All glow Glow virtual color wheel
39.       Macro Macro select channel
40.      Macro direction Macro direction channel
41.        Macro speed Macro speed channel
42.       Control Fixture control channel

Mode Pixel Fine

DMX channel Parameter Description
1.          Dimmer Main Source Ch. 1 Pixel 1 filament 8 bit dimmer 0 – 100%
2.         Dimmer Main Source Ch. 1 fine Pixel 1 filament 16 bit dimmer 0 – 100%
3.         Red 1 glow Pixel 1 Red 8 bit
4.         Green 1 glow Pixel 1 Green 8 bit
5.         Blue 1 glow Pixel 1 Blue 8 bit
6.         White 1 glow Pixel 1 White 8 bit
7.         Dimmer Main Source Ch. 2 Pixel 2 filament 8 bit dimmer 0 – 100%
8.         Dimmer Main Source Ch. 2 fine Pixel 2 filament 16 bit dimmer 0 – 100%
9.         Red 2 glow Pixel 2 Red 8 bit
10.        Green 2 glow Pixel 2 Green 8 bit
11.         Blue 2 glow Pixel 2 Blue 8 bit
12.        White 2 glow Pixel 2 White 8 bit
13.        Dimmer Main Source Ch. 3 Pixel 3 filament 8 bit dimmer 0 – 100%
14.        Dimmer Main Source Ch. 3 fine Pixel 3 filament 16 bit dimmer 0 – 100%
15.        Red 3 glow Pixel 3 Red 8 bit
16.        Green 3 glow Pixel 3 Green 8 bit
17.        Blue 3 glow Pixel 3 Blue 8 bit
18.        White 3 glow Pixel 3 White 8 bit
19.        Dimmer Main Source Ch. 4 Pixel 4 filament 8 bit dimmer 0 – 100%
20.       Dimmer Main Source Ch. 4 fine Pixel 4 filament 16 bit dimmer 0 – 100%
21.        Red 4 glow Pixel 4 Red 8 bit
22.       Green 4 glow Pixel 4 Green 8 bit
23.       Blue 4 glow Pixel 4 Blue 8 bit
24.       White 4 glow Pixel 4 White 8 bit
25.       Dimmer Main Source Ch. 5 Pixel 5 filament 8 bit dimmer 0 – 100%
26.       Dimmer Main Source Ch. 5 fine Pixel 5 filament 16 bit dimmer 0 – 100%
27.       Red 5 glow Pixel 5 Red 8 bit
28.       Green 5 glow Pixel 5 Green 8 bit
29.       Blue 5 glow Pixel 5 Blue 8 bit
30.       White 5 glow Pixel 5 White 8 bit
31.        Dimmer Main Source Ch. 6 Pixel 6 filament 8 bit dimmer 0 – 100%
32.       Dimmer Main Source Ch. 6 fine Pixel 6 filament 16 bit dimmer 0 – 100%
33.       Red 6 glow Pixel 6 Red 8 bit
34.       Green 6 glow Pixel 6 Green 8 bit
35.       Blue 6 glow Pixel 6 Blue 8 bit
36.       White 6 glow Pixel 6 White 8 bit
37.       Dimmer Main Source Ch. 7 Pixel 7 filament 8 bit dimmer 0 – 100%
38.       Dimmer Main Source Ch. 7 fine Pixel 7 filament 16 bit dimmer 0 – 100%
39.       Red 7 glow Pixel 7 Red 8 bit
40.      Green 7 glow Pixel 7 Green 8 bit
41.        Blue 7 glow Pixel 7 Blue 8 bit
42.       White 7 glow Pixel 7 White 8 bit
43.       Strobe glow Glow strobe channel
44.       Strobe Main Source Filaments strobe channel
45.       Color wheel All glow Glow virtual color wheel
46.       Macro Macro select channel
47.       Macro direction Macro direction channel
48.       Macro speed Macro speed channel
49.       Control Fixture control channel
