DMX CHART [P2 EVO]

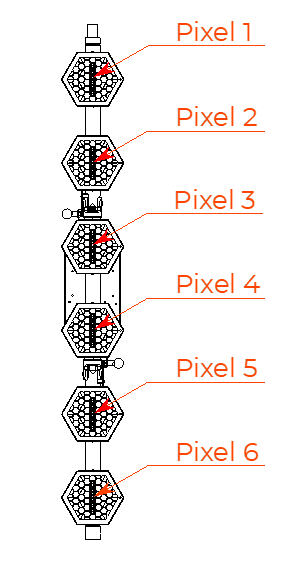

PIXEL ORDER
DMX MODES
Mode Super Simple
| DMX CH | Parameter | Description |
| 1. | Intensity Main Source Ch.1 | Pixel 1 HaloLED 8 bit dimmer 0 – 100% |
| 2. | Intensity Main Source Ch.2 | Pixel 2 HaloLED 8 bit dimmer 0 – 100% |
| 3. | Intensity Main Source Ch.3 | Pixel 3 HaloLED 8 bit dimmer 0 – 100% |
| 4. | Intensity Main Source Ch.4 | Pixel 4 HaloLED 8 bit dimmer 0 – 100% |
| 5. | Intensity Main Source Ch.5 | Pixel 5 HaloLED 8 bit dimmer 0 – 100% |
| 6. | Intensity Main Source Ch.6 | Pixel 6 HaloLED 8 bit dimmer 0 – 100% |
| 7. | All Glow Red | Red glow 8 bit on all pixels 0 – 100% |
| 8. | All Glow Green | Green glow 8 bit on all pixels 0 – 100% |
| 9. | All glow Blue | Blue glow 8 bit on all pixels 0 – 100% |
| 10. | All glow White | White 8 bit on all glow pixels 0 – 100% |
| 11. | Strobe Main Source | HaloLED strobe channel |
| 12. | Strobe glow | Glow strobe channel |
Mode Simple
| DMX channel | Parameter | Description |
| 1. | Intensity Main Source Ch.1 | Pixel 1 HaloLED 8 bit dimmer 0 – 100% |
| 2. | Intensity Main Source Ch.2 | Pixel 2 HaloLED 8 bit dimmer 0 – 100% |
| 3. | Intensity Main Source Ch.3 | Pixel 3 HaloLED 8 bit dimmer 0 – 100% |
| 4. | Intensity Main Source Ch.4 | Pixel 4 HaloLED 8 bit dimmer 0 – 100% |
| 5. | Intensity Main Source Ch.5 | Pixel 5 HaloLED 8 bit dimmer 0 – 100% |
| 6. | Intensity Main Source Ch.6 | Pixel 6 HaloLED 8 bit dimmer 0 – 100% |
| 7. | Intensity Glow RGBW | RGBW Glow All pixels 8 bit dimmer 0 – 100% |
| 8. | All Glow Red | Red 8 bit on all glow pixels 0 – 100% |
| 9. | All Glow Green | Green 8 bit on all glow pixels 0 – 100% |
| 10. | All glow Blue | Blue 8 bit on all glow pixels 0 – 100% |
| 11. | All glow White | White 8 bit on all glow pixels 0 – 100% |
| 12. | Strobe Main Source | HaloLED strobe channel |
| 13. | Strobe Glow | Glow strobe channel |
| 14. | Colour wheel All Glow | Glow virtual colour wheel on all pixels |
| 15. | Intensity Macro | Macro 8 bit dimmer 0 – 100% |
| 16. | Macro | Macro select channel |
| 17. | Macro speed | Macro speed channel |
| 18. | Control | Fixture control channel |
Mode Standard
| DMX channel | Parameter | Description |
| 1. | Intensity Main Source Ch.1 | Pixel 1 HaloLED 8 bit dimmer 0 – 100% |
| 2. | Intensity Main Source Ch.2 | Pixel 2 HaloLED 8 bit dimmer 0 – 100% |
| 3. | Intensity Main Source Ch.3 | Pixel 3 HaloLED 8 bit dimmer 0 – 100% |
| 4. | Intensity Main Source Ch.4 | Pixel 4 HaloLED 8 bit dimmer 0 – 100% |
| 5. | Intensity Main Source Ch.5 | Pixel 5 HaloLED 8 bit dimmer 0 – 100% |
| 6. | Intensity Main Source Ch.6 | Pixel 6 HaloLED 8 bit dimmer 0 – 100% |
| 7. | Intensity Glow RGBW | Dimmer 8 bit of RGBW Glow 0 – 100% |
| 8. | Ch.1 Glow Red | Red 8 bit on glow pixel 1 0 – 100% |
| 9. | Ch.1 Glow Green | Green 8 bit on glow pixel 1 0 – 100% |
| 10. | Ch.1 Glow Blue | Blue 8 bit on glow pixel 1 0 – 100% |
| 11. | Ch.1 Glow White | White 8 bit on glow pixel 1 0 – 100% |
| 12. | Ch. 2 Glow Red | Red 8 bit on glow pixel 2 0 – 100% |
| 13. | Ch. 2 Glow Green | Green 8 bit on glow pixel 2 0 – 100% |
| 14. | Ch. 2 Glow Blue | Blue 8 bit on glow pixel 2 0 – 100% |
| 15. | Ch. 2 Glow White | White 8 bit on glow pixel 2 0 – 100% |
| 16. | Ch. 3 Glow Red | Red 8 bit on glow pixel 3 0 – 100% |
| 17. | Ch. 3 Glow Green | Green 8 bit on glow pixel 3 0 – 100% |
| 18. | Ch. 3 Glow Blue | Blue 8 bit on glow pixel 3 0 – 100% |
| 19. | Ch. 3 Glow White | White 8 bit on glow pixel 3 0 – 100% |
| 20. | Ch. 4 Glow Red | Red 8 bit on glow pixel 4 0 – 100% |
| 21. | Ch. 4 Glow Green | Green 8 bit on glow pixel 4 0 – 100% |
| 22. | Ch. 4 glow Blue | Blue 8 bit on glow pixel 4 0 – 100% |
| 23. | Ch. 4 Glow White | White 8 bit on glow pixel 4 0 – 100% |
| 24. | Ch. 5 Glow Red | Red 8 bit on glow pixel 5 0 – 100% |
| 25. | Ch. 5 Glow Green | Green 8 bit on glow pixel 5 0 – 100% |
| 26. | Ch. 5 Glow Blue | Blue 8 bit on glow pixel 5 0 – 100% |
| 27. | Ch. 5 Glow White | White 8 bit on glow pixel 5 0 – 100% |
| 28. | Ch. 6 Glow Red | Red 8 bit on glow pixel 6 0 – 100% |
| 29. | Ch. 6 Glow Green | Green 8 bit on glow pixel 6 0 – 100% |
| 30. | Ch. 6 Glow Blue | Blue 8 bit on glow pixel 6 0 – 100% |
| 31. | Ch. 6 Glow White | White 8 bit on glow pixel 6 0 – 100% |
| 32. | Strobe Main Source | HaloLED strobe channel |
| 33. | Strobe Glow | Glow strobe channel |
| 34. | Colour wheel All Glow | Glow virtual colour wheel on all pixels |
| 35. | Intensity Macro | Macro 8 bit dimmer 0 – 100% |
| 36. | Macro | Macro select channel |
| 37. | Macro speed | Macro speed channel |
| 38. | Control | Fixture control channel |
Mode Standard Fine
| DMX channel | Parameter | Description |
| 1. | Intensity Main Source Ch.1 | Pixel 1 HaloLED 8 bit dimmer 0 – 100% |
| 2. | Intensity Main Source Ch.1 fine | Pixel 1 HaloLED 16 bit dimmer 0 – 100% |
| 3. | Intensity Main Source Ch.2 | Pixel 2 HaloLED 8 bit dimmer 0 – 100% |
| 4. | Intensity Main Source Ch.2 fine | Pixel 2 HaloLED 16 bit dimmer 0 – 100% |
| 5. | Intensity Main Source Ch.3 | Pixel 3 HaloLED 8 bit dimmer 0 – 100% |
| 6. | Intensity Main Source Ch.3 fine | Pixel 3 HaloLED 16 bit dimmer 0 – 100% |
| 7. | Intensity Main Source Ch.4 | Pixel 4 HaloLED 8 bit dimmer 0 – 100% |
| 8. | Intensity Main Source Ch.4 fine | Pixel 4 HaloLED 16 bit dimmer 0 – 100% |
| 9. | Intensity Main Source Ch.5 | Pixel 5 HaloLED 8 bit dimmer 0 – 100% |
| 10. | Intensity Main Source Ch.5 fine | Pixel 5 HaloLED 16 bit dimmer 0 – 100% |
| 11. | Intensity Main Source Ch.6 | Pixel 6 HaloLED 8 bit dimmer 0 – 100% |
| 12. | Intensity Main Source Ch.6 fine | Pixel 6 HaloLED 16 bit dimmer 0 – 100% |
| 13. | Intensity Glow RGBW | RGBW Glow All pixels 8 bit dimmer 0 – 100% |
| 14. | Intensity Glow RGBW fine | RGBW Glow All pixels 16 bit dimmer 0 – 100% |
| 15. | Ch. 1 Glow Red | Red 8 bit on glow pixel 1 0 – 100% |
| 16. | Ch. 1 Glow Red fine | Red 16 bit on glow pixel 1 0 – 100% |
| 17. | Ch. 1 Glow Green | Green 8 bit on glow pixel 1 0 – 100% |
| 18. | Ch. 1 Glow Green fine | Green 16 bit on glow pixel 1 0 – 100% |
| 19. | Ch. 1 Glow Blue | Blue 8 bit on glow pixel 1 0 – 100% |
| 20. | Ch. 1 Glow Blue fine | Blue 16 bit on glow pixel 1 0 – 100% |
| 21. | Ch. 1 Glow White | White 8 bit on glow pixel 1 0 – 100% |
| 22. | Ch. 1 Glow White fine | White 16 bit on glow pixel 1 0 – 100% |
| 23. | Ch. 2 Glow Red | Red 8 bit on glow pixel 2 0 – 100% |
| 24. | Ch. 2 Glow Red fine | Red 16 bit on glow pixel 2 0 – 100% |
| 25. | Ch. 2 Glow Green | Green 8 bit on glow pixel 2 0 – 100% |
| 26. | Ch. 2 Glow Green fine | Green 16 bit on glow pixel 2 0 – 100% |
| 27. | Ch. 2 Glow Blue | Blue 8 bit on glow pixel 2 0 – 100% |
| 28. | Ch. 2 Glow Blue fine | Blue 16 bit on glow pixel 2 0 – 100% |
| 29. | Ch. 2 Glow White | White 8 bit on glow pixel 2 0 – 100% |
| 30. | Ch. 2 Glow White fine | White 16 bit on glow pixel 2 0 – 100% |
| 31. | Ch. 3 Glow Red | Red 8 bit on glow pixel 3 0 – 100% |
| 32. | Ch. 3 Glow Red fine | Red 16 bit on glow pixel 3 0 – 100% |
| 33. | Ch. 3 Glow Green | Green 8 bit on glow pixel 3 0 – 100% |
| 34. | Ch. 3 Glow Green fine | Green 16 bit on glow pixel 3 0 – 100% |
| 35. | Ch. 3 Glow Blue | Blue 8 bit on glow pixel 3 0 – 100% |
| 36. | Ch. 3 Glow Blue fine | Blue 16 bit on glow pixel 3 0 – 100% |
| 37. | Ch. 3 Glow White | White 8 bit on glow pixel 3 0 – 100% |
| 38. | Ch. 3 Glow White fine | White 16 bit on glow pixel 3 0 – 100% |
| 39. | Ch. 4 Glow Red | Red 8 bit on glow pixel 4 0 – 100% |
| 40. | Ch. 4 Glow Red fine | Red 16 bit on glow pixel 4 0 – 100% |
| 41. | Ch. 4 Glow Green | Green 8 bit on glow pixel 4 0 – 100% |
| 42. | Ch. 4 Glow Green fine | Green 16 bit on glow pixel 4 0 – 100% |
| 43. | Ch. 4 glow Blue | Blue 8 bit on glow pixel 4 0 – 100% |
| 44. | Ch. 4 Glow Blue fine | Blue 16 bit on glow pixel 4 0 – 100% |
| 45. | Ch. 4 Glow White | White 8 bit on glow pixel 4 0 – 100% |
| 46. | Ch. 4 Glow White fine | White 16 bit on glow pixel 4 0 – 100% |
| 47. | Ch. 5 Glow Red | Red 8 bit on glow pixel 5 0 – 100% |
| 48. | Ch. 5 Glow Red fine | Red 16 bit on glow pixel 5 0 – 100% |
| 49. | Ch. 5 Glow Green | Green 8 bit on glow pixel 5 0 – 100% |
| 50. | Ch. 5 Glow Green fine | Green 16 bit on glow pixel 5 0 – 100% |
| 51. | Ch. 5 Glow Blue | Blue 8 bit on glow pixel 5 0 – 100% |
| 52. | Ch. 5 Glow Blue fine | Blue 16 bit on glow pixel 5 0 – 100% |
| 53. | Ch. 5 Glow White | White 8 bit on glow pixel 5 0 – 100% |
| 54. | Ch. 5 Glow White fine | White 16 bit on glow pixel 5 0 – 100% |
| 55. | Ch. 6 Glow Red | Red 8 bit on glow pixel 6 0 – 100% |
| 56. | Ch. 6 Glow Red fine | Red 16 bit on glow pixel 6 0 – 100% |
| 57. | Ch. 6 Glow Green | Green 8 bit on glow pixel 6 0 – 100% |
| 58. | Ch. 6 Glow Green fine | Green 16 bit on glow pixel 6 0 – 100% |
| 59. | Ch. 6 Glow Blue | Blue 8 bit on glow pixel 6 0 – 100% |
| 60. | Ch. 6 Glow Blue fine | Blue 16 bit on glow pixel 6 0 – 100% |
| 61. | Ch. 6 Glow White | White 8 bit on glow pixel 6 0 – 100% |
| 62. | Ch. 6 Glow White fine | White 16 bit on glow pixel 6 0 – 100% |
| 63. | Strobe Main Source | HaloLED strobe channel |
| 64. | Strobe Glow | Glow strobe channel |
| 65. | Colour wheel All Glow | Glow virtual colour wheel on all pixels |
| 66. | Intensity Macro | Macro 8 bit dimmer 0 – 100% |
| 67. | Macro | Macro select channel |
| 68. | Macro speed | Macro speed channel |
| 69. | Control | Fixture control channel |
Mode Pixel
| DMX channel | Parameter | Description |
| 1. | Intensity Main Source Ch.1 | Pixel 1 HaloLED 8 bit dimmer 0 – 100% |
| 2. | Ch.1 Glow Red | Red 8 bit on glow pixel 1 0 – 100% |
| 3. | Ch.1 Glow Green | Green 8 bit on glow pixel 1 0 – 100% |
| 4. | Ch.1 Glow Blue | Blue 8 bit on glow pixel 1 0 – 100% |
| 5. | Ch.1 Glow White | White 8 bit on glow pixel 1 0 – 100% |
| 6. | Intensity Main Source Ch.2 | Pixel 2 HaloLED 8 bit dimmer 0 – 100% |
| 7. | Ch. 2 Glow Red | Red 8 bit on glow pixel 2 0 – 100% |
| 8. | Ch. 2 Glow Green | Green 8 bit on glow pixel 2 0 – 100% |
| 9. | Ch. 2 Glow Blue | Blue 8 bit on glow pixel 2 0 – 100% |
| 10. | Ch. 2 Glow White | White 8 bit on glow pixel 2 0 – 100% |
| 11. | Intensity Main Source Ch.3 | Pixel 3 HaloLED 8 bit dimmer 0 – 100% |
| 12. | Ch. 3 Glow Red | Red 8 bit on glow pixel 3 0 – 100% |
| 13. | Ch. 3 Glow Green | Green 8 bit on glow pixel 3 0 – 100% |
| 14. | Ch. 3 Glow Blue | Blue 8 bit on glow pixel 3 0 – 100% |
| 15. | Ch. 3 Glow White | White 8 bit on glow pixel 3 0 – 100% |
| 16. | Intensity Main Source Ch.4 | Pixel 4 HaloLED 8 bit dimmer 0 – 100% |
| 17. | Ch. 4 Glow Red | Red 8 bit on glow pixel 4 0 – 100% |
| 18. | Ch. 4 Glow Green | Green 8 bit on glow pixel 4 0 – 100% |
| 19. | Ch. 4 glow Blue | Blue 8 bit on glow pixel 4 0 – 100% |
| 20. | Ch. 4 Glow White | White 8 bit on glow pixel 4 0 – 100% |
| 21. | Intensity Main Source Ch.5 | Pixel 5 HaloLED 8 bit dimmer 0 – 100% |
| 22. | Ch. 5 Glow Red | Red 8 bit on glow pixel 5 0 – 100% |
| 23. | Ch. 5 Glow Green | Green 8 bit on glow pixel 5 0 – 100% |
| 24. | Ch. 5 Glow Blue | Blue 8 bit on glow pixel 5 0 – 100% |
| 25. | Ch. 5 Glow White | White 8 bit on glow pixel 5 0 – 100% |
| 26. | Intensity Main Source Ch.6 | Pixel 6 HaloLED 8 bit dimmer 0 – 100% |
| 27. | Ch. 6 Glow Red | Red 8 bit on glow pixel 6 0 – 100% |
| 28. | Ch. 6 Glow Green | Green 8 bit on glow pixel 6 0 – 100% |
| 29. | Ch. 6 Glow Blue | Blue 8 bit on glow pixel 6 0 – 100% |
| 30. | Ch. 6 Glow White | White 8 bit on glow pixel 6 0 – 100% |
| 31. | Strobe Main Source | HaloLED strobe channel |
| 32. | Strobe Glow | Glow strobe channel |
| 33. | Colour wheel All Glow | Glow virtual colour wheel on all pixels |
| 34. | Intensity Macro | Macro 8 bit dimmer 0 – 100% |
| 35. | Macro | Macro select channel |
| 36. | Macro speed | Macro speed channel |
| 37. | Control | Fixture control channel |
Mode Pixel Fine
| DMX channel | Parameter | Description |
| 1. | Intensity Main Source Ch.1 | Pixel 1 HaloLED 8 bit dimmer 0 – 100% |
| 2. | Intensity Main Source Ch.1 fine | Pixel 1 HaloLED 16 bit dimmer 0 – 100% |
| 3. | Ch. 1 Glow Red | Red 8 bit on glow pixel 1 0 – 100% |
| 4. | Ch. 1 Glow Red fine | Red 16 bit on glow pixel 1 0 – 100% |
| 5. | Ch. 1 Glow Green | Green 8 bit on glow pixel 1 0 – 100% |
| 6. | Ch. 1 Glow Green fine | Green 16 bit on glow pixel 1 0 – 100% |
| 7. | Ch. 1 Glow Blue | Blue 8 bit on glow pixel 1 0 – 100% |
| 8. | Ch. 1 Glow Blue fine | Blue 16 bit on glow pixel 1 0 – 100% |
| 9. | Ch. 1 Glow White | White 8 bit on glow pixel 1 0 – 100% |
| 10. | Ch. 1 Glow White fine | White 16 bit on glow pixel 1 0 – 100% |
| 11. | Intensity Main Source Ch.2 | Pixel 2 HaloLED 8 bit dimmer 0 – 100% |
| 12. | Intensity Main Source Ch.2 fine | Pixel 2 HaloLED 16 bit dimmer 0 – 100% |
| 13. | Ch. 2 Glow Red | Red 8 bit on glow pixel 2 0 – 100% |
| 14. | Ch. 2 Glow Red fine | Red 16 bit on glow pixel 2 0 – 100% |
| 15. | Ch. 2 Glow Green | Green 8 bit on glow pixel 2 0 – 100% |
| 16. | Ch. 2 Glow Green fine | Green 16 bit on glow pixel 2 0 – 100% |
| 17. | Ch. 2 Glow Blue | Blue 8 bit on glow pixel 2 0 – 100% |
| 18. | Ch. 2 Glow Blue fine | Blue 16 bit on glow pixel 2 0 – 100% |
| 19. | Ch. 2 Glow White | White 8 bit on glow pixel 2 0 – 100% |
| 20. | Ch. 2 Glow White fine | White 16 bit on glow pixel 2 0 – 100% |
| 21. | Intensity Main Source Ch.3 | Pixel 3 HaloLED 8 bit dimmer 0 – 100% |
| 22. | Intensity Main Source Ch.3 fine | Pixel 3 HaloLED 16 bit dimmer 0 – 100% |
| 23. | Ch. 3 Glow Red | Red 8 bit on glow pixel 3 0 – 100% |
| 24. | Ch. 3 Glow Red fine | Red 16 bit on glow pixel 3 0 – 100% |
| 25. | Ch. 3 Glow Green | Green 8 bit on glow pixel 3 0 – 100% |
| 26. | Ch. 3 Glow Green fine | Green 16 bit on glow pixel 3 0 – 100% |
| 27. | Ch. 3 Glow Blue | Blue 8 bit on glow pixel 3 0 – 100% |
| 28. | Ch. 3 Glow Blue fine | Blue 16 bit on glow pixel 3 0 – 100% |
| 29. | Ch. 3 Glow White | White 8 bit on glow pixel 3 0 – 100% |
| 30. | Ch. 3 Glow White fine | White 16 bit on glow pixel 3 0 – 100% |
| 31. | Intensity Main Source Ch.4 | Pixel 4 HaloLED 8 bit dimmer 0 – 100% |
| 32. | Intensity Main Source Ch.4 fine | Pixel 4 HaloLED 16 bit dimmer 0 – 100% |
| 33. | Ch. 4 Glow Red | Red 8 bit on glow pixel 4 0 – 100% |
| 34. | Ch. 4 Glow Red fine | Red 16 bit on glow pixel 4 0 – 100% |
| 35. | Ch. 4 Glow Green | Green 8 bit on glow pixel 4 0 – 100% |
| 36. | Ch. 4 Glow Green fine | Green 16 bit on glow pixel 4 0 – 100% |
| 37. | Ch. 4 Glow Blue | Blue 8 bit on glow pixel 4 0 – 100% |
| 38. | Ch. 4 Glow Blue fine | Blue 16 bit on glow pixel 4 0 – 100% |
| 39. | Ch. 4 Glow White | White 8 bit on glow pixel 4 0 – 100% |
| 40. | Ch. 4 Glow White fine | White 16 bit on glow pixel 4 0 – 100% |
| 41. | Intensity Main Source Ch.5 | Pixel 5 HaloLED 8 bit dimmer 0 – 100% |
| 42. | Intensity Main Source Ch.5 fine | Pixel 5 HaloLED 16 bit dimmer 0 – 100% |
| 43. | Ch. 5 Glow Red | Red 8 bit on glow pixel 5 0 – 100% |
| 44. | Ch. 5 Glow Red fine | Red 16 bit on glow pixel 5 0 – 100% |
| 45. | Ch. 5 Glow Green | Green 8 bit on glow pixel 5 0 – 100% |
| 46. | Ch. 5 Glow Green fine | Green 16 bit on glow pixel 5 0 – 100% |
| 47. | Ch. 5 Glow Blue | Blue 8 bit on glow pixel 5 0 – 100% |
| 48. | Ch. 5 Glow Blue fine | Blue 16 bit on glow pixel 5 0 – 100% |
| 49. | Ch. 5 Glow White | White 8 bit on glow pixel 5 0 – 100% |
| 50. | Ch. 5 Glow White fine | White 16 bit on glow pixel 5 0 – 100% |
| 51. | Intensity Main Source Ch.6 | Pixel 6 HaloLED 8 bit dimmer 0 – 100% |
| 52. | Intensity Main Source Ch.6 fine | Pixel 6 HaloLED 16 bit dimmer 0 – 100% |
| 53. | Ch. 6 Glow Red | Red 8 bit on glow pixel 6 0 – 100% |
| 54. | Ch. 6 Glow Red fine | Red 16 bit on glow pixel 6 0 – 100% |
| 55. | Ch. 6 Glow Green | Green 8 bit on glow pixel 6 0 – 100% |
| 56. | Ch. 6 Glow Green fine | Green 16 bit on glow pixel 6 0 – 100% |
| 57. | Ch. 6 Glow Blue | Blue 8 bit on glow pixel 6 0 – 100% |
| 58. | Ch. 6 Glow Blue fine | Blue 16 bit on glow pixel 6 0 – 100% |
| 59. | Ch. 6 Glow White | White 8 bit on glow pixel 6 0 – 100% |
| 60. | Ch. 6 Glow White fine | White 16 bit on glow pixel 6 0 – 100% |
| 61. | Strobe Main Source | HaloLED strobe channel |
| 62. | Strobe Glow | Glow strobe channel |
| 63. | Colour wheel All Glow | Glow virtual colour wheel on all pixels |
| 64. | Intensity Macro | Macro 8 bit dimmer 0 – 100% |
| 65. | Macro | Macro select channel |
| 66. | Macro speed | Macro speed channel |
| 67. | Control | Fixture control channel |
CHANNEL DESCRIPTIONS
Strobe Main Source
| DMX Value | Function | Control type |
| 0-9 | Strobe open | constant |
| 10 - 19 | Strobe closed | constant |
| 20 - 121 | Strobe with growing frequency 0,5 Hz - 30 Hz | linear |
| 122 - 129 | Strobe open | constant |
| 130 - 245 | Random strobe with growing frequency | linear |
| 246 - 255 | Strobe open | constant |
Strobe Glow
| DMX Value | Function | Control type |
| 0-9 | Strobe open | constant |
| 10 - 19 | Strobe closed | constant |
| 20 - 121 | Strobe with growing frequency 0,5 Hz - 30 Hz | linear |
| 122 - 129 | Strobe open | constant |
| 130 - 245 | Random strobe with growing frequency | linear |
| 246 - 255 | Strobe open | constant |
Strobe Center Source
| DMX Value | Function | Control type |
| 0-9 | Strobe open | constant |
| 10 - 19 | Strobe closed | constant |
| 20 - 121 | Strobe with growing frequency 0,5 Hz - 30 Hz | linear |
| 122 - 129 | Strobe open | constant |
| 130 - 245 | Random strobe with growing frequency | linear |
| 246 - 255 | Strobe open | constant |
Colour Wheel
| DMX value | Function | Control type | ||
| 0 - 9 | Virtual color wheel open | constant | ||
| 10 - 39 | White | constant | ||
| 40 - 237 | Virtual color wheel engaged | linear | ||
| RED | GREEN | BLUE | ||
| 40 | 255 | 0 | 0 | |
| 41 | 255 | 8 | 0 | |
| 42 | 255 | 16 | 0 | |
| 43 | 255 | 24 | 0 | |
| 44 | 255 | 32 | 0 | |
| 45 | 255 | 40 | 0 | |
| 46 | 255 | 48 | 0 | |
| 47 | 255 | 56 | 0 | |
| 48 | 255 | 64 | 0 | |
| 49 | 255 | 72 | 0 | |
| 50 | 255 | 80 | 0 | |
| 51 | 255 | 88 | 0 | |
| 52 | 255 | 96 | 0 | |
| 53 | 255 | 104 | 0 | |
| 54 | 255 | 112 | 0 | |
| 55 | 255 | 120 | 0 | |
| 56 | 255 | 128 | 0 | |
| 57 | 255 | 136 | 0 | |
| 58 | 255 | 144 | 0 | |
| 59 | 255 | 152 | 0 | |
| 60 | 255 | 160 | 0 | |
| 61 | 255 | 168 | 0 | |
| 62 | 255 | 176 | 0 | |
| 63 | 255 | 184 | 0 | |
| 64 | 255 | 192 | 0 | |
| 65 | 255 | 200 | 0 | |
| 66 | 255 | 208 | 0 | |
| 67 | 255 | 216 | 0 | |
| 68 | 255 | 224 | 0 | |
| 69 | 255 | 232 | 0 | |
| 70 | 255 | 240 | 0 | |
| 71 | 255 | 248 | 0 | |
| 72 | 255 | 255 | 0 | |
| 73 | 247 | 255 | 0 | |
| 74 | 239 | 255 | 0 | |
| 75 | 231 | 255 | 0 | |
| 76 | 223 | 255 | 0 | |
| 77 | 215 | 255 | 0 | |
| 78 | 207 | 255 | 0 | |
| 79 | 199 | 255 | 0 | |
| 80 | 191 | 255 | 0 | |
| 81 | 183 | 255 | 0 | |
| 82 | 175 | 255 | 0 | |
| 83 | 167 | 255 | 0 | |
| 84 | 159 | 255 | 0 | |
| 85 | 151 | 255 | 0 | |
| 86 | 143 | 255 | 0 | |
| 87 | 135 | 255 | 0 | |
| 88 | 127 | 255 | 0 | |
| 89 | 119 | 255 | 0 | |
| 90 | 111 | 255 | 0 | |
| 91 | 103 | 255 | 0 | |
| 92 | 95 | 255 | 0 | |
| 93 | 87 | 255 | 0 | |
| 94 | 79 | 255 | 0 | |
| 95 | 71 | 255 | 0 | |
| 96 | 63 | 255 | 0 | |
| 97 | 55 | 255 | 0 | |
| 98 | 47 | 255 | 0 | |
| 99 | 39 | 255 | 0 | |
| 100 | 31 | 255 | 0 | |
| 101 | 23 | 255 | 0 | |
| 102 | 15 | 255 | 0 | |
| 103 | 7 | 255 | 0 | |
| 104 | 0 | 255 | 0 | |
| 105 | 0 | 255 | 7 | |
| 106 | 0 | 255 | 14 | |
| 107 | 0 | 255 | 21 | |
| 108 | 0 | 255 | 28 | |
| 109 | 0 | 255 | 35 | |
| 110 | 0 | 255 | 42 | |
| 111 | 0 | 255 | 49 | |
| 112 | 0 | 255 | 56 | |
| 113 | 0 | 255 | 63 | |
| 114 | 0 | 255 | 70 | |
| 115 | 0 | 255 | 77 | |
| 116 | 0 | 255 | 84 | |
| 117 | 0 | 255 | 91 | |
| 118 | 0 | 255 | 98 | |
| 119 | 0 | 255 | 105 | |
| 120 | 0 | 255 | 112 | |
| 121 | 0 | 255 | 119 | |
| 122 | 0 | 255 | 126 | |
| 123 | 0 | 255 | 133 | |
| 124 | 0 | 255 | 140 | |
| 125 | 0 | 255 | 147 | |
| 126 | 0 | 255 | 154 | |
| 127 | 0 | 255 | 161 | |
| 128 | 0 | 255 | 168 | |
| 129 | 0 | 255 | 175 | |
| 130 | 0 | 255 | 182 | |
| 131 | 0 | 255 | 189 | |
| 132 | 0 | 255 | 196 | |
| 133 | 0 | 255 | 203 | |
| 134 | 0 | 255 | 210 | |
| 135 | 0 | 255 | 217 | |
| 136 | 0 | 255 | 224 | |
| 137 | 0 | 255 | 231 | |
| 138 | 0 | 255 | 238 | |
| 139 | 0 | 255 | 245 | |
| 140 | 0 | 255 | 252 | |
| 141 | 0 | 255 | 255 | |
| 142 | 0 | 247 | 255 | |
| 143 | 0 | 239 | 255 | |
| 144 | 0 | 231 | 255 | |
| 145 | 0 | 223 | 255 | |
| 146 | 0 | 215 | 255 | |
| 147 | 0 | 207 | 255 | |
| 148 | 0 | 199 | 255 | |
| 149 | 0 | 191 | 255 | |
| 150 | 0 | 183 | 255 | |
| 151 | 0 | 175 | 255 | |
| 152 | 0 | 167 | 255 | |
| 153 | 0 | 159 | 255 | |
| 154 | 0 | 151 | 255 | |
| 155 | 0 | 143 | 255 | |
| 156 | 0 | 135 | 255 | |
| 157 | 0 | 127 | 255 | |
| 158 | 0 | 119 | 255 | |
| 159 | 0 | 111 | 255 | |
| 160 | 0 | 103 | 255 | |
| 161 | 0 | 95 | 255 | |
| 162 | 0 | 87 | 255 | |
| 163 | 0 | 79 | 255 | |
| 164 | 0 | 71 | 255 | |
| 165 | 0 | 63 | 255 | |
| 166 | 0 | 55 | 255 | |
| 167 | 0 | 47 | 255 | |
| 168 | 0 | 39 | 255 | |
| 169 | 0 | 31 | 255 | |
| 170 | 0 | 23 | 255 | |
| 171 | 0 | 15 | 255 | |
| 172 | 0 | 7 | 255 | |
| 173 | 0 | 0 | 255 | |
| 174 | 8 | 0 | 255 | |
| 175 | 16 | 0 | 255 | |
| 176 | 24 | 0 | 255 | |
| 177 | 32 | 0 | 255 | |
| 178 | 40 | 0 | 255 | |
| 179 | 48 | 0 | 255 | |
| 180 | 56 | 0 | 255 | |
| 181 | 64 | 0 | 255 | |
| 182 | 72 | 0 | 255 | |
| 183 | 80 | 0 | 255 | |
| 184 | 88 | 0 | 255 | |
| 185 | 96 | 0 | 255 | |
| 186 | 104 | 0 | 255 | |
| 187 | 112 | 0 | 255 | |
| 188 | 120 | 0 | 255 | |
| 189 | 128 | 0 | 255 | |
| 190 | 136 | 0 | 255 | |
| 191 | 144 | 0 | 255 | |
| 192 | 152 | 0 | 255 | |
| 193 | 160 | 0 | 255 | |
| 194 | 168 | 0 | 255 | |
| 195 | 176 | 0 | 255 | |
| 196 | 184 | 0 | 255 | |
| 197 | 192 | 0 | 255 | |
| 198 | 200 | 0 | 255 | |
| 199 | 208 | 0 | 255 | |
| 200 | 216 | 0 | 255 | |
| 201 | 224 | 0 | 255 | |
| 202 | 232 | 0 | 255 | |
| 203 | 240 | 0 | 255 | |
| 204 | 248 | 0 | 255 | |
| 205 | 255 | 0 | 255 | |
| 206 | 255 | 0 | 247 | |
| 207 | 255 | 0 | 239 | |
| 208 | 255 | 0 | 231 | |
| 209 | 255 | 0 | 223 | |
| 210 | 255 | 0 | 215 | |
| 211 | 255 | 0 | 207 | |
| 212 | 255 | 0 | 199 | |
| 213 | 255 | 0 | 191 | |
| 214 | 255 | 0 | 183 | |
| 215 | 255 | 0 | 175 | |
| 216 | 255 | 0 | 167 | |
| 217 | 255 | 0 | 159 | |
| 218 | 255 | 0 | 151 | |
| 219 | 255 | 0 | 143 | |
| 220 | 255 | 0 | 135 | |
| 221 | 255 | 0 | 127 | |
| 222 | 255 | 0 | 119 | |
| 223 | 255 | 0 | 111 | |
| 224 | 255 | 0 | 103 | |
| 225 | 255 | 0 | 95 | |
| 226 | 255 | 0 | 87 | |
| 227 | 255 | 0 | 79 | |
| 228 | 255 | 0 | 71 | |
| 229 | 255 | 0 | 63 | |
| 230 | 255 | 0 | 55 | |
| 231 | 255 | 0 | 47 | |
| 232 | 255 | 0 | 39 | |
| 233 | 255 | 0 | 31 | |
| 234 | 255 | 0 | 23 | |
| 235 | 255 | 0 | 15 | |
| 236 | 255 | 0 | 7 | |
| 237 | 255 | 0 | 0 | |
| 238 - 254 | Color spinning | linear | ||
| 255 | Virtual color wheel open | constant | ||
Macro
| DMX Value | Function | Control type |
| 0 | Macro off | constant |
| 1 - 3 | Macro 1 | constant |
| 4 - 7 | Macro 2 | constant |
| 8 - 11 | Macro 3 | constant |
| 12 - 15 | Macro 4 | constant |
| 16 - 19 | Macro 5 | constant |
| 20 - 23 | Macro 6 | constant |
| 24 - 27 | Macro 7 | constant |
| 28 - 31 | Macro 8 | constant |
| 32 - 35 | Macro 9 | constant |
| 36 - 39 | Macro 10 | constant |
| 40 - 43 | Macro 11 | constant |
| 44 - 47 | Macro 12 | constant |
| 48 - 51 | Macro 13 | constant |
| 52 - 55 | Macro 14 | constant |
| 56 - 59 | Macro 15 | constant |
| 60 - 63 | Macro 16 | constant |
| 64 - 67 | Macro 17 | constant |
| 68 - 71 | Macro 18 | constant |
| 72 - 75 | Macro 19 | constant |
| 76 - 79 | Macro 20 | constant |
| 80 - 83 | Macro 21 | constant |
| 84 - 87 | Macro 22 | constant |
| 88 - 91 | Macro 23 | constant |
| 92 - 95 | Macro 24 | constant |
| 96 - 99 | Macro 25 | constant |
| 100 - 103 | Macro 26 | constant |
| 104 - 107 | Macro 27 | constant |
| 108 - 111 | Macro 28 | constant |
| 112 - 115 | Macro 29 | constant |
| 116 - 119 | Macro 30 | constant |
| 120 - 123 | Macro 31 | constant |
| 124 - 127 | Macro 32 | constant |
| 128 - 131 | Macro 33 | constant |
| 132 - 135 | Macro 34 | constant |
| 136 - 139 | Macro 35 | constant |
| 140 - 143 | Macro 36 | constant |
| 144 - 147 | Macro 37 | constant |
| 148 - 151 | Macro 38 | constant |
| 152 - 155 | Macro 39 | constant |
| 156 - 159 | Macro 40 | constant |
| 160 - 163 | Macro 41 | constant |
| 164 - 167 | Macro 42 | constant |
| 168 - 171 | Macro 43 | constant |
| 172 - 175 | Macro 44 | constant |
| 176 - 179 | Macro 45 | constant |
| 180 - 183 | Macro 46 | constant |
| 184 - 187 | Macro 47 | constant |
| 188 - 191 | Macro 48 | constant |
| 192 - 195 | Macro 49 | constant |
| 196 - 199 | Macro 50 | constant |
| 200 - 203 | Macro 51 | constant |
| 204 - 207 | Macro 52 | constant |
| 208 - 211 | Macro 53 | constant |
| 212 - 215 | Macro 54 | constant |
| 216 - 219 | Macro 55 | constant |
| 220 - 223 | Macro 56 | constant |
| 224 - 227 | Macro 57 | constant |
| 228 - 231 | Macro 58 | constant |
| 232 - 235 | Macro 59 | constant |
| 236 - 239 | Macro 60 | constant |
| 240 - 243 | Macro 61 | constant |
| 244 - 247 | Macro 62 | constant |
| 248 - 251 | Macro 63 | constant |
| 252 - 255 | Macro 64 | constant |
Control Channel
| DMX Value | Function | Control type |
| 0 - 30 | No function | constant |
| 31 - 40 | Flicker mode 1 | constant |
| 41 - 50 | Flicker mode 2 | constant |
| 51 – 60 | Flicker mode 3 | constant |
| 61 - 70 | Dimming curve linear | constant |
| 71 - 80 | Dimming curve logarithmic | constant |
| 81 – 245 | Reserved | constant |
| 246 - 255 | Default all values | constant |
NOTE: To change settings via control channel you should set the desire value and keep it for at least 5 seconds.
RDM data
| Manufacturer ID | 01CCh |
| Model ID | 00.10 |
| Super Simple personality ID | 01 |
| Simple personality ID | 02 |
| Standard personality ID | 03 |
| Standard Fine personality ID | 04 |
| Pixel personality ID | 05 |
| Pixel Fine personality ID | 06 |
Parameters supported:
| Parameter ID | Operation supported |
| DISC_UNIQUE_BRANCH | discovery |
| DISC_MUTE | discovery |
| DISC_UN_MUTE | discovery |
| DEVICE_INFO | get |
| SUPPORTED_PARAMETERS | get |
| SOFTWARE_VERSION_LABEL | get |
| DMX_START_ADDRESS | get and set |
| IDENTIFY_DEVICE | get and set |
| DEVICE_MODEL_DESCRIPTION | get |
| MANUFACTURER_LABEL | get |
| DEVICE_LABEL | get and set |
| DMX_PERSONALITY | get and set |
| DEVICE_HOURS | get |
Related Articles
User Manual [P2 EVO]
WELCOME Dear User, Thank you for choosing Portman P2 EVO™ – the original product with a registered design. We are proud to deliver you the highest quality, greatest design and real passion with our product. Each fixture in the Portman portfolio is ...DMX CHART [EVO ELEMENT]
PIXEL ORDER DMX MODES Mode Super Simple DMX CH Parameter Description 1) Intensity Main Source Ch.1 Pixel 1 HaloLED 8 bit dimmer 0 – 100% 2) Intensity Main Source Ch.2 Pixel 2 HaloLED 8 bit dimmer 0 – 100% 3) Intensity Main Source Ch.3 Pixel 3 HaloLED ...DMX CHART [P3 EVO]
PIXEL ORDER DMX MODES Mode Super Simple DMX channel Parameter Description 1. Intensity Main Source Ch.1 Pixel 1 HaloLED 8 bit dimmer 0 – 100% 2. Intensity Main Source Ch.2 Pixel 2 HaloLED 8 bit dimmer 0 – 100% 3. Intensity Main Source Ch.3 Pixel 3 ...DMX CHART [P1 EVO]
PIXEL ORDER DMX MODES Mode Super Simple DMX channel Parameter Description 1. Intensity Main Source Ch.1 Pixel 1 HaloLED 8 bit dimmer 0 – 100% 2. Intensity Main Source Ch.2 Pixel 2 HaloLED 8 bit dimmer 0 – 100% 3. Intensity Main Source Ch.3 Pixel 3 ...DMX CHART [AMULET]
PIXEL ORDER DMX MODES Mode Super Simple DMX CH Parameter Description 1. Intensity Main Source Ch.1 Pixel 1 HaloLED 8 bit dimmer 0 – 100% 2. Intensity Main Source Ch.2 Pixel 2 HaloLED 8 bit dimmer 0 – 100% 3. Intensity Main Source Ch.3 Pixel 3 HaloLED ...
