Ferrite installation [S-TRIBE]

Ferrite installation [S-TRIBE]

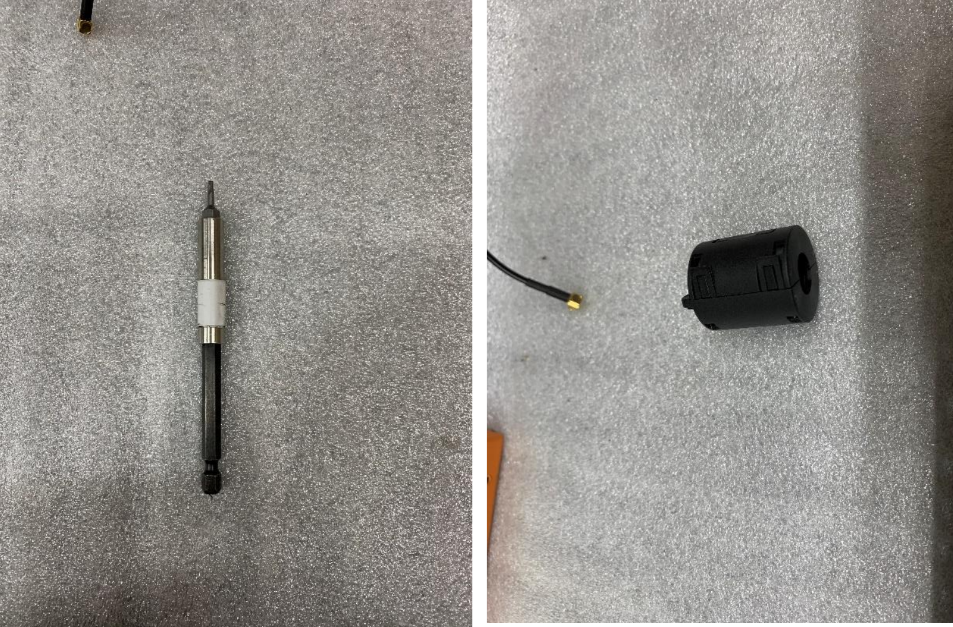

  1. PREPARE:

    1. 2mm Allen wrench
    2. Ferrite.

  2. FERRITE INSTALLATION:

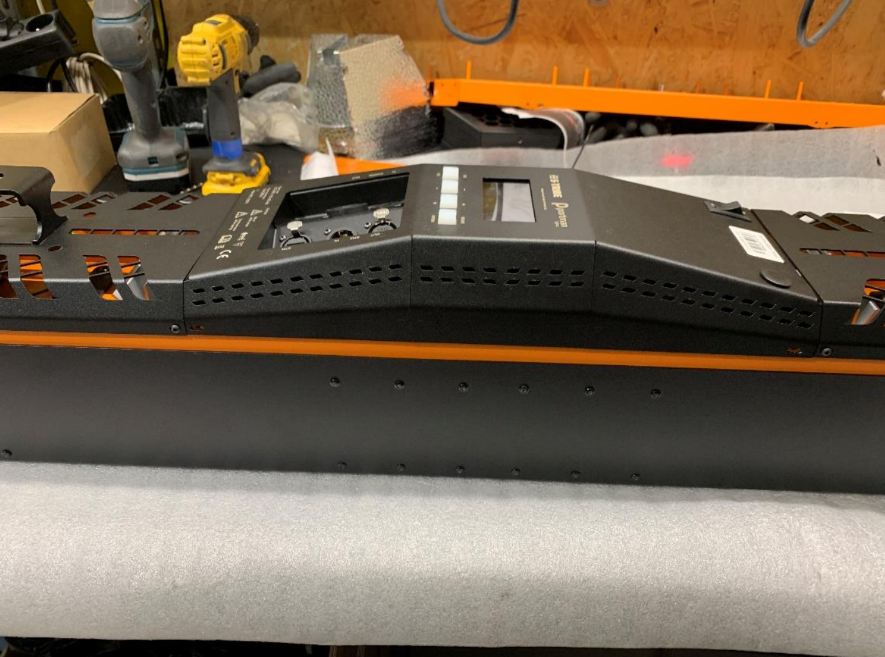

    1. PUT THE DEVICE WITH THE COVER OF THE ELECTRONICS BOX UPWARDS.

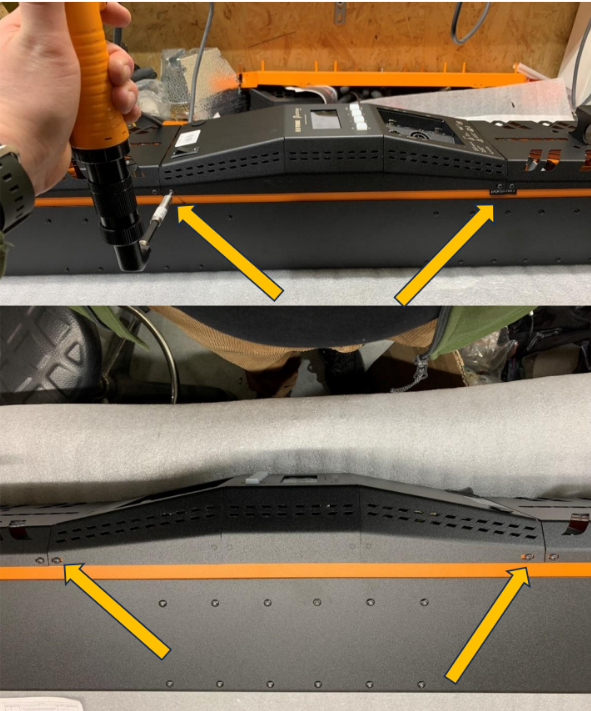

    2. USING A 2MM ALLEN WRENCH, UNSCREW THE ELECTRONICS COVER.

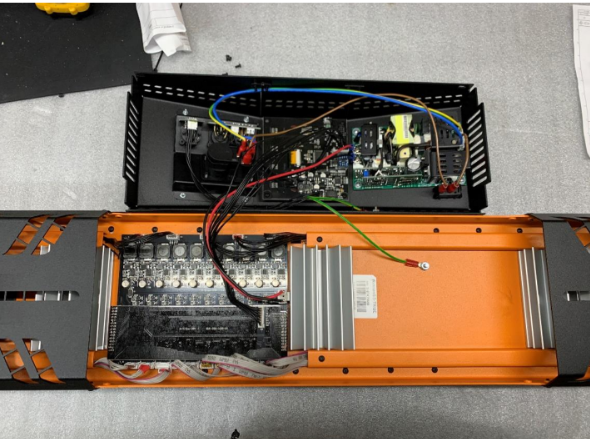

    3. REMOVE THE ELECTRONICS COVER.

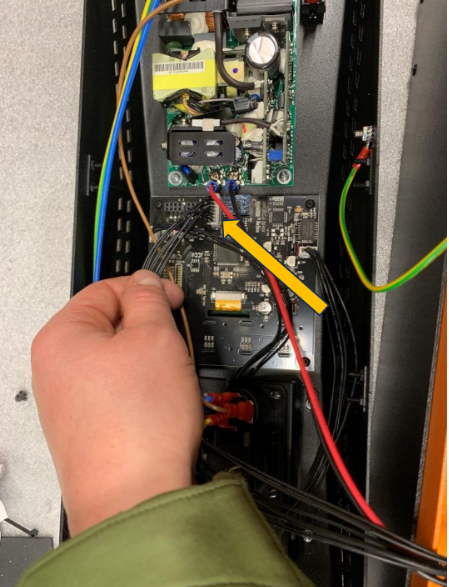

    4. UNPLUG THE LDB-LPU CABLE FROM THE SOCKET IN THE LPU HOLDING THE WHITE PLUG.

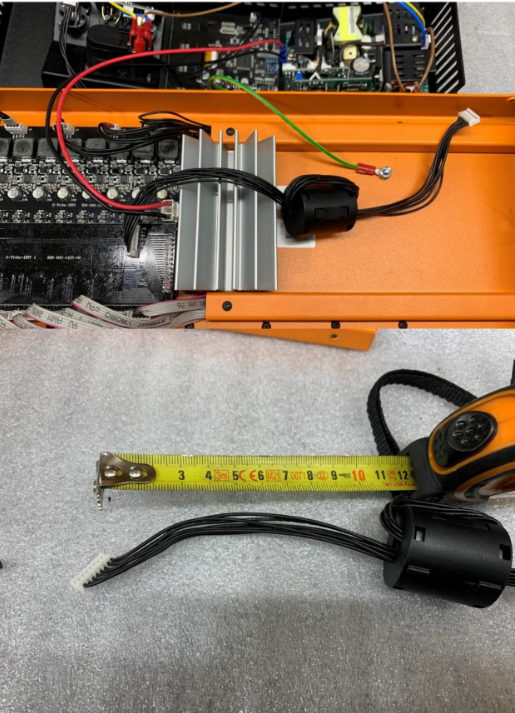

    5. OPEN THE FERRITE, WRAP THE WIRE AROUND IT 1 TIME FOR ABOUT 12CM FROM THE LDB SOCKET SIDE AND CLOSE IT.

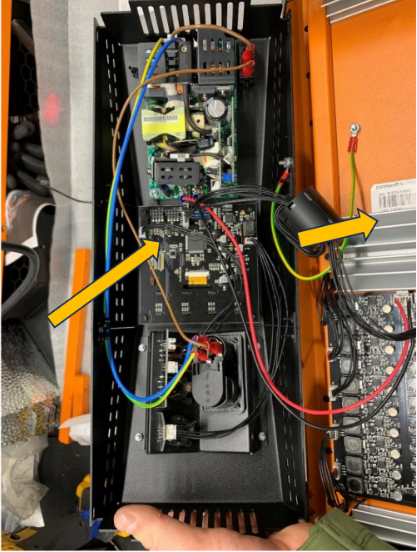

    6. LIFT THE ELECTRONICS COVER, PLUG THE WIRE WITH THE FERRITE INTO THE SOCKET IN THE LPU, CAREFULLY CLOSE THE ELECTRONICS COVER SO THAT THE FERRITE IS BEHIND THE HEAT SINK AT THE HEIGHT OF THE S/N STICKER.
    7. USING A 2MM ALLEN WRENCH, SCREW ON THE ELECTRONICS COVER.
