Loose pixel [P1 retro, P2 hexaline]

Loose pixel [P1 retro, P2 hexaline]

  1. Tools needed:

    1. Gloves
    2. Phillips screwdriver

  2. Steps:

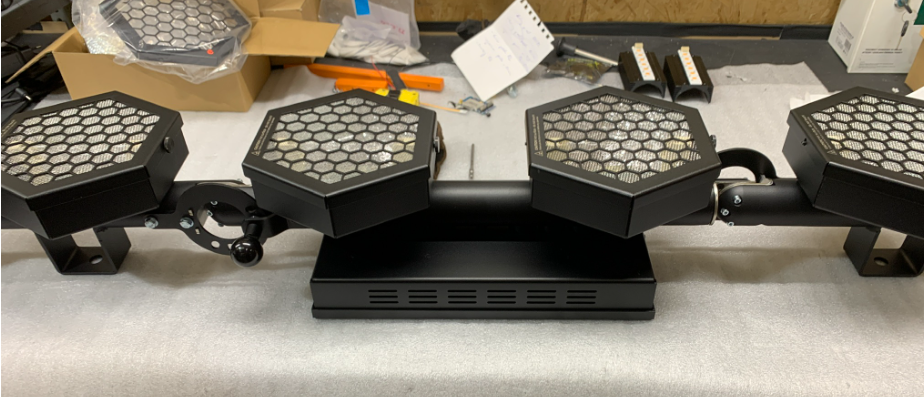

    1. Place the device so that the pixels are facing upward

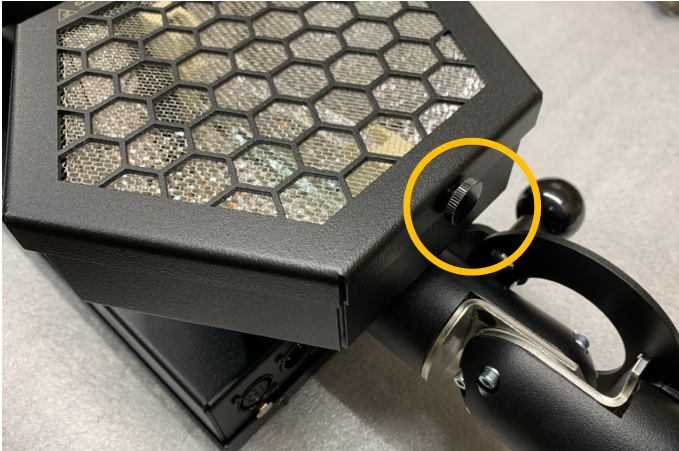

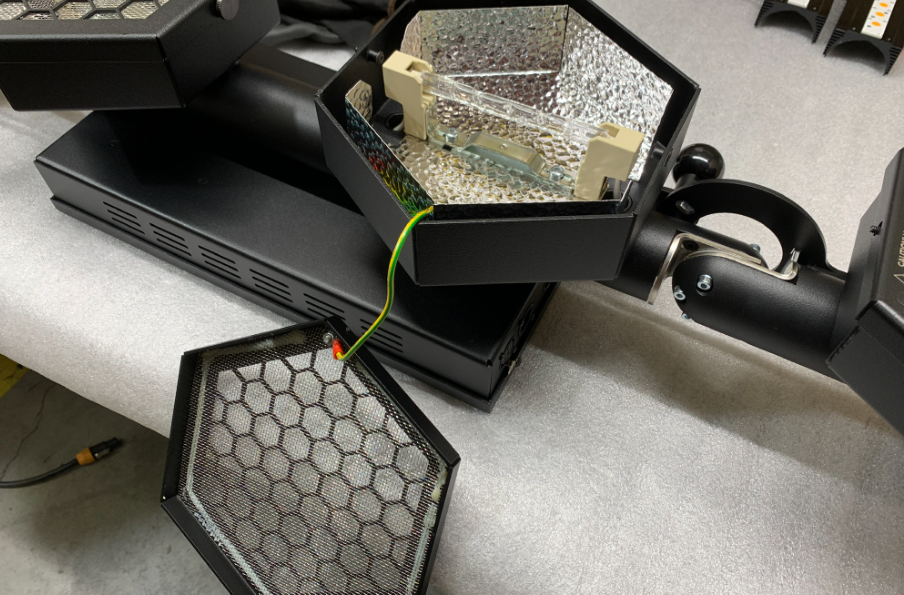

    2. Unscrew the thumbscrew and put down the pixel can cover

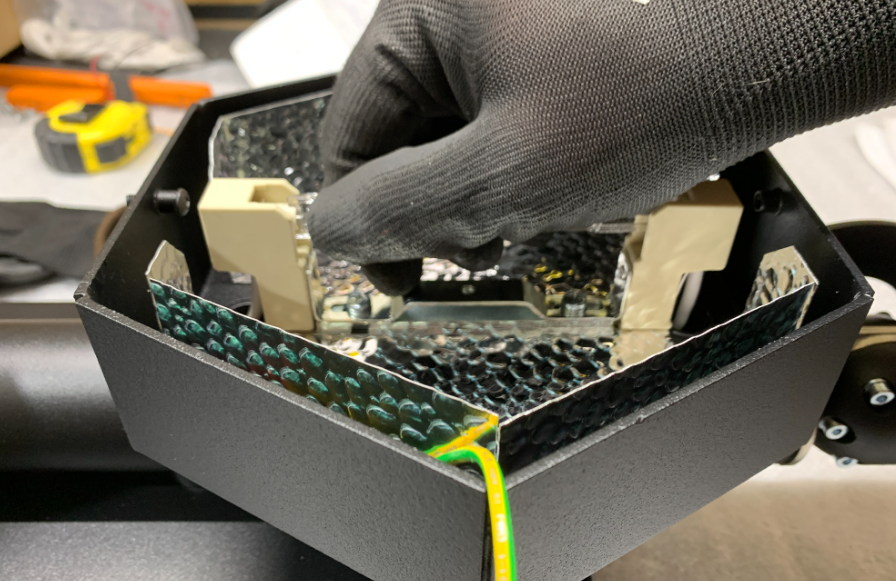

    3. Remove the filament (Hold the filament with a gloved hand only!).

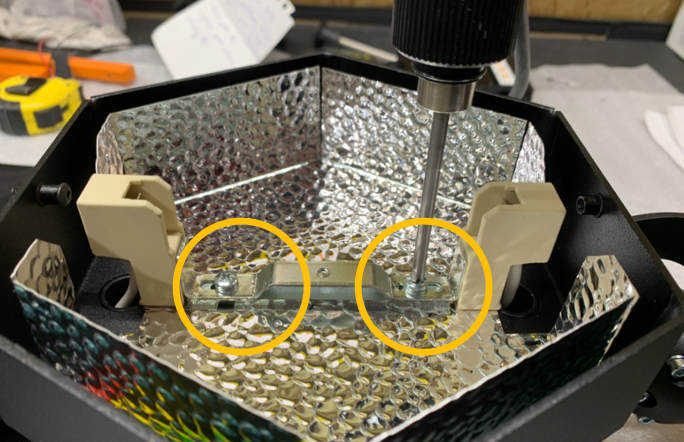

    4. Tighten the screws holding the pixel with a Phillips screwdriver
    5. Insert the filament back in (Hold the filament with a gloved hand only!).

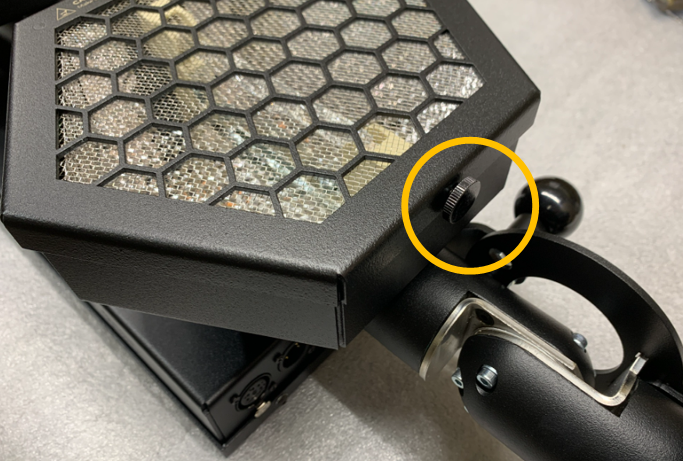

    6. Put on the pixel cover and tighten with a thumbscrew.
