Programming CPU Board P-LPU1 with the STM32 Cube [P1 retro lamp, P2 hexaline, P3 PIX3L, P1 mini]

Programming CPU Board P-LPU1 with the STM32 Cube [P1 retro lamp, P2 hexaline, P3 PIX3L, P1 mini]

You need:

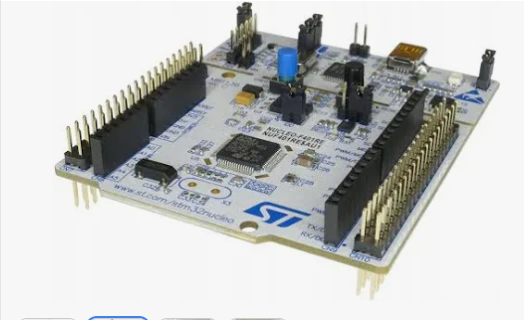

  1. Programator STM 32 Core (you can order it by writing to support@portmanlights.com )
  1. USB A- B MINI USB cable
  2. STM 32 Cube software (download here)

Programming:

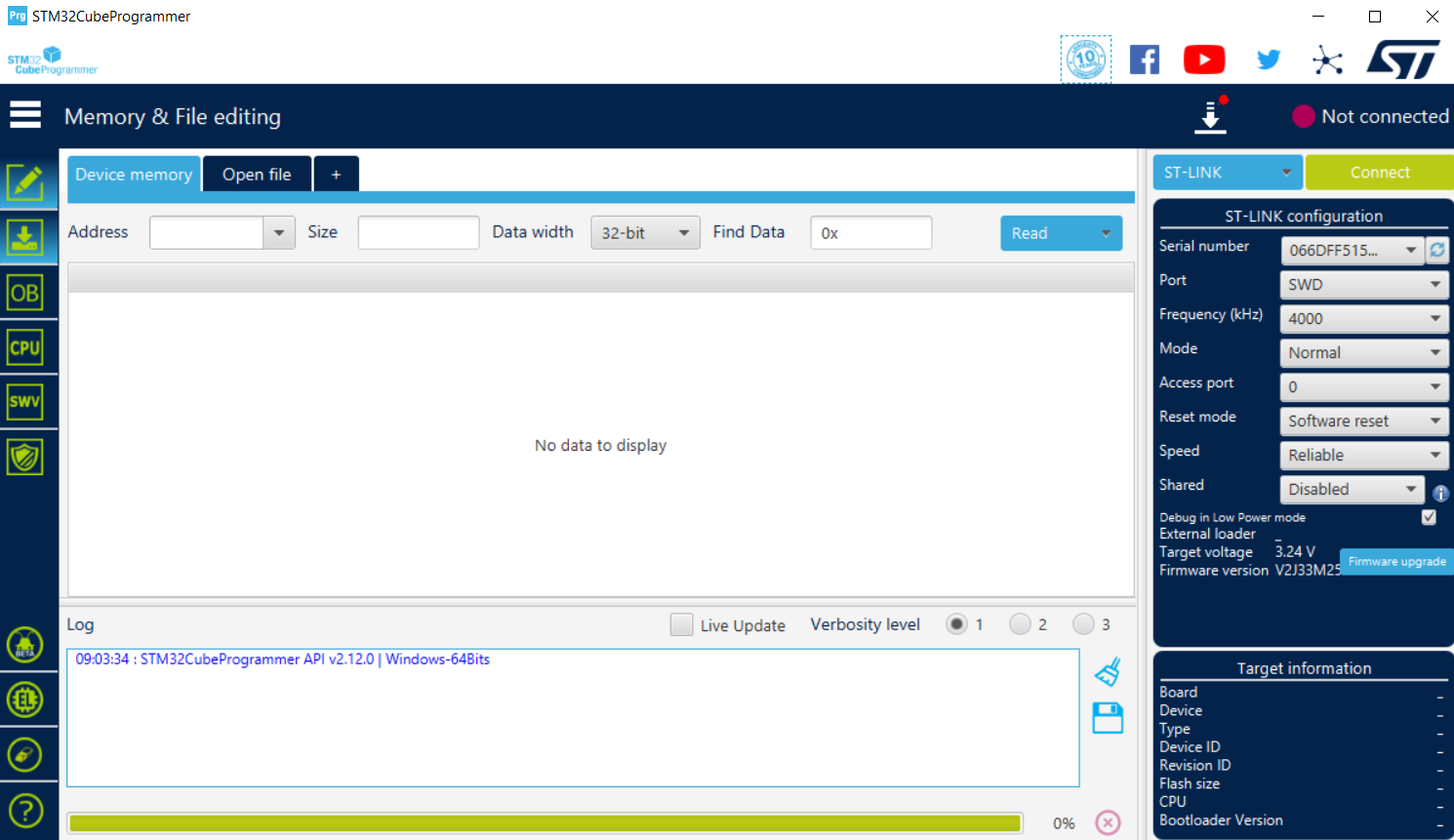

  1. After installing the STM 32 Cube, open the program

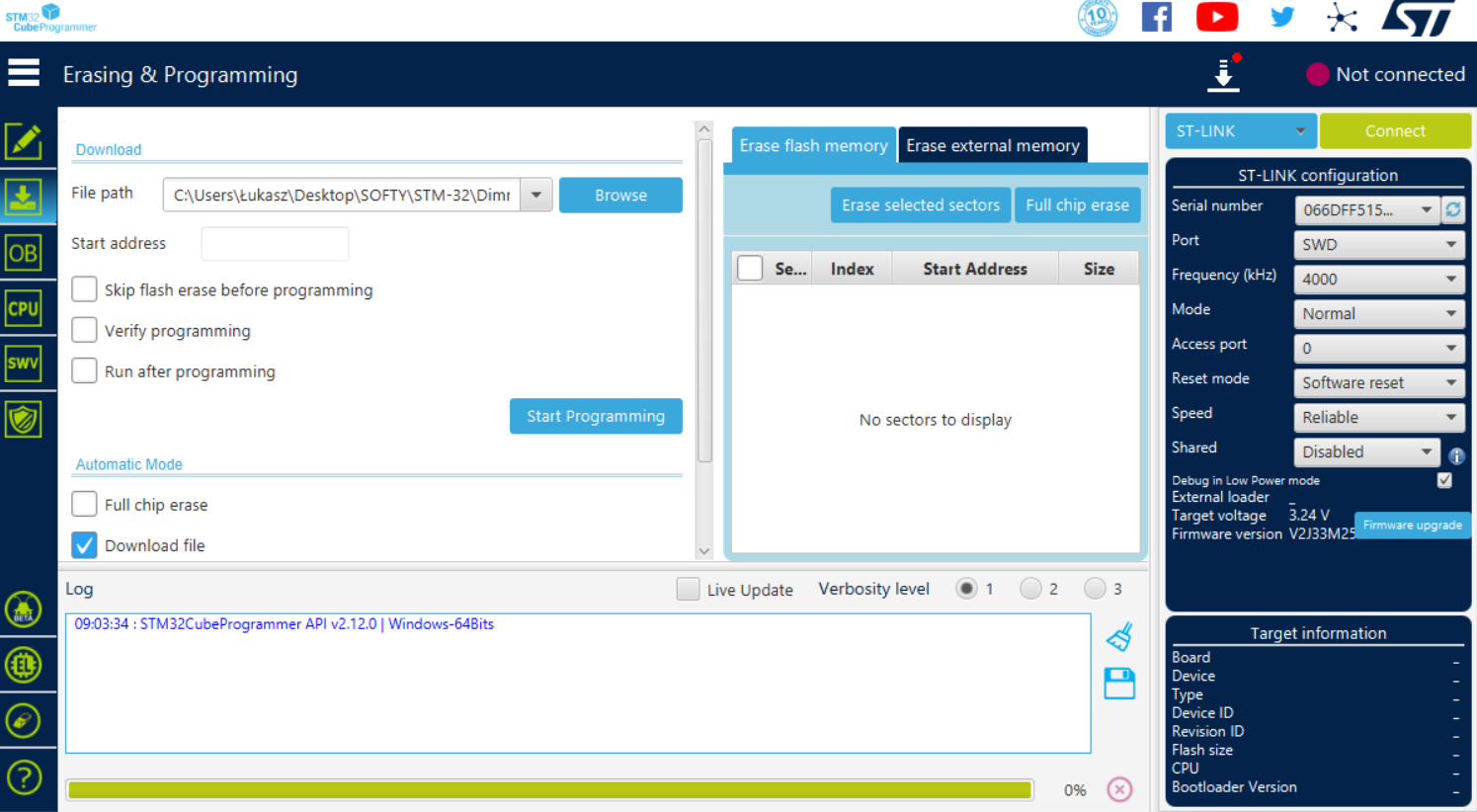

  2. Click on after "Erasing & Programming"

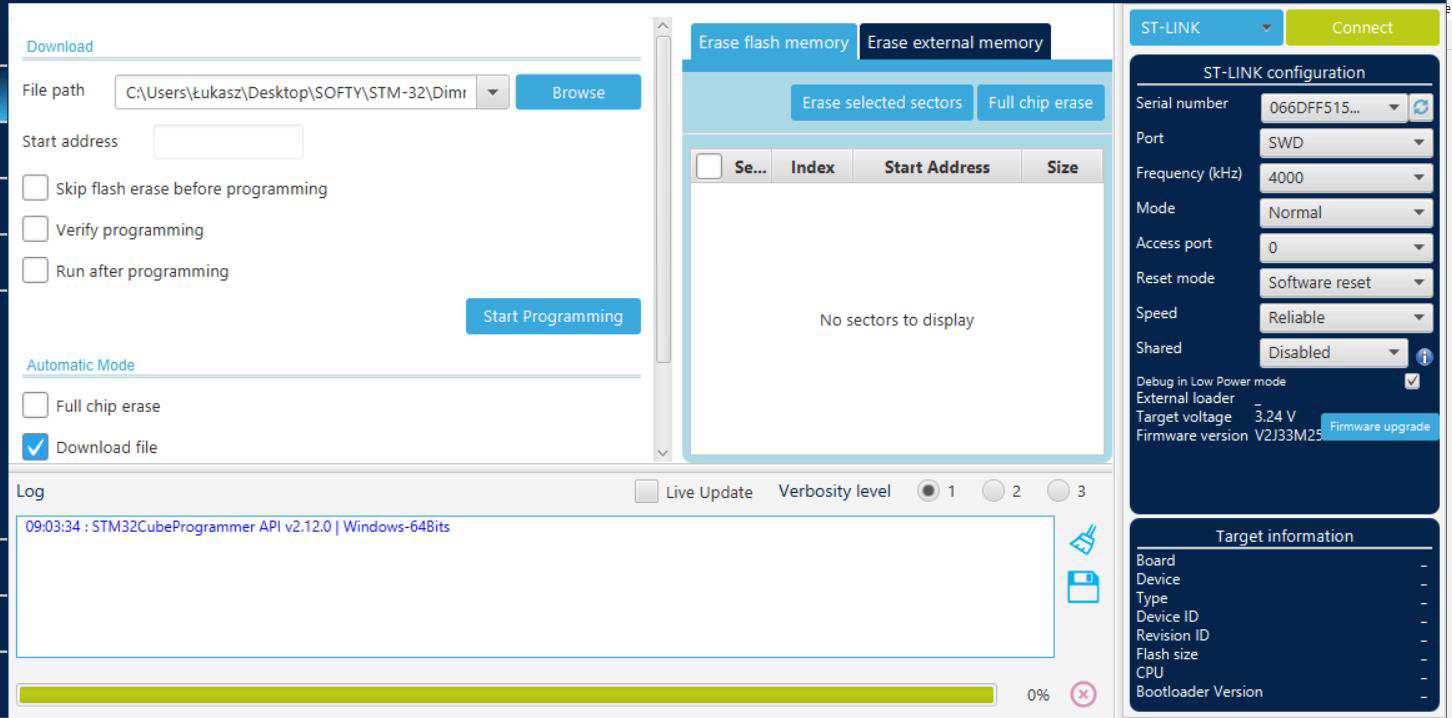

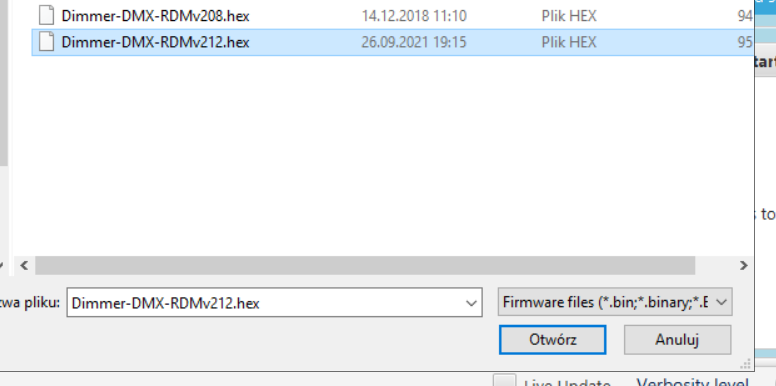

  3. Click on "browse" and select the appropriate firmware you want to upload to the board

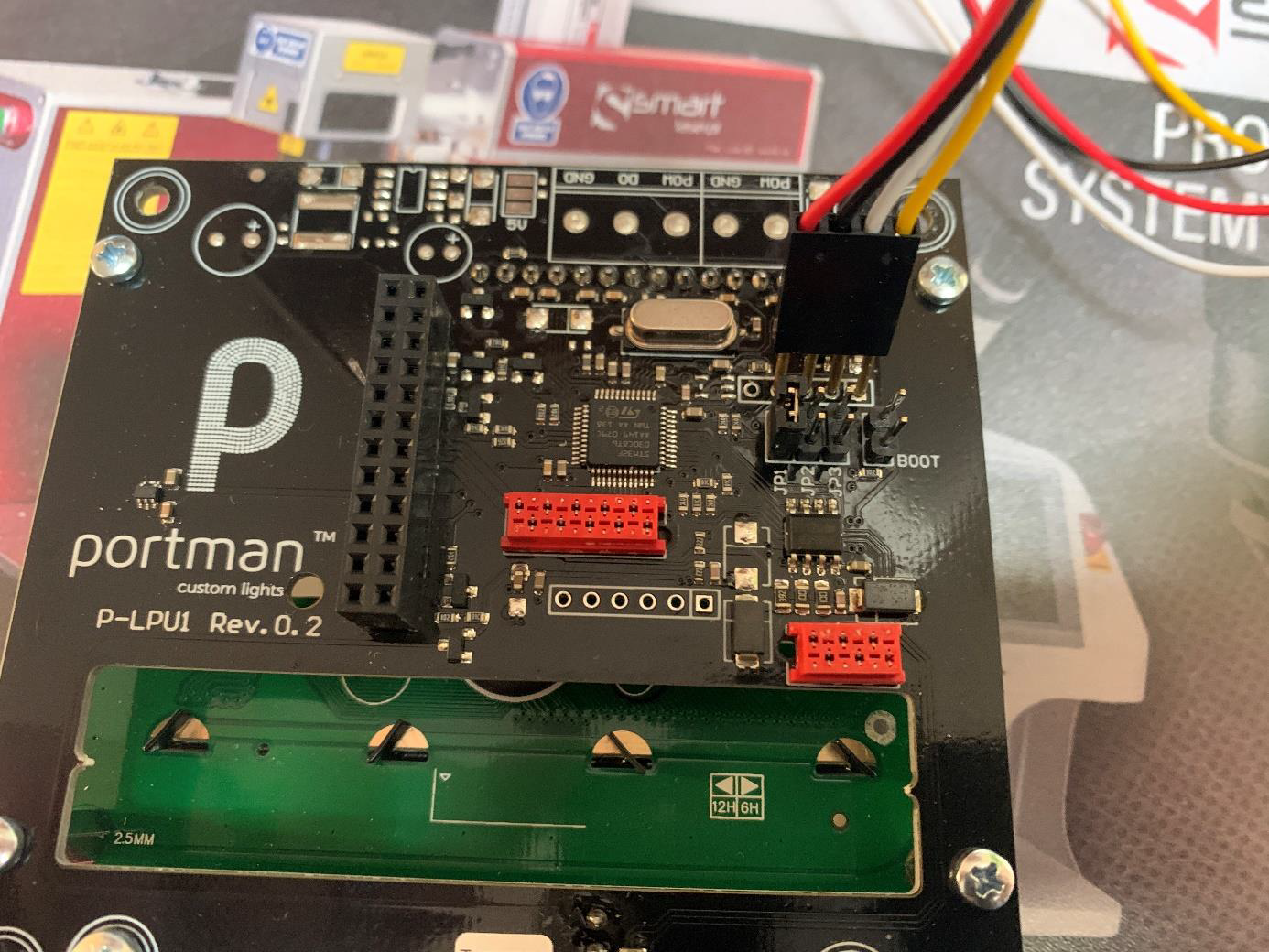

  4. Connect the STM32 Nucleo programmer to the computer and push the pins of the programmer into the appropriate place on the CPU Board P-LPU1 (shown in the picture)
  5. Click "connect" (the icon on the STM32 Cube should light up green). After connecting the STM32 Nucleo with the STM 32 Cube program, press "start programming".

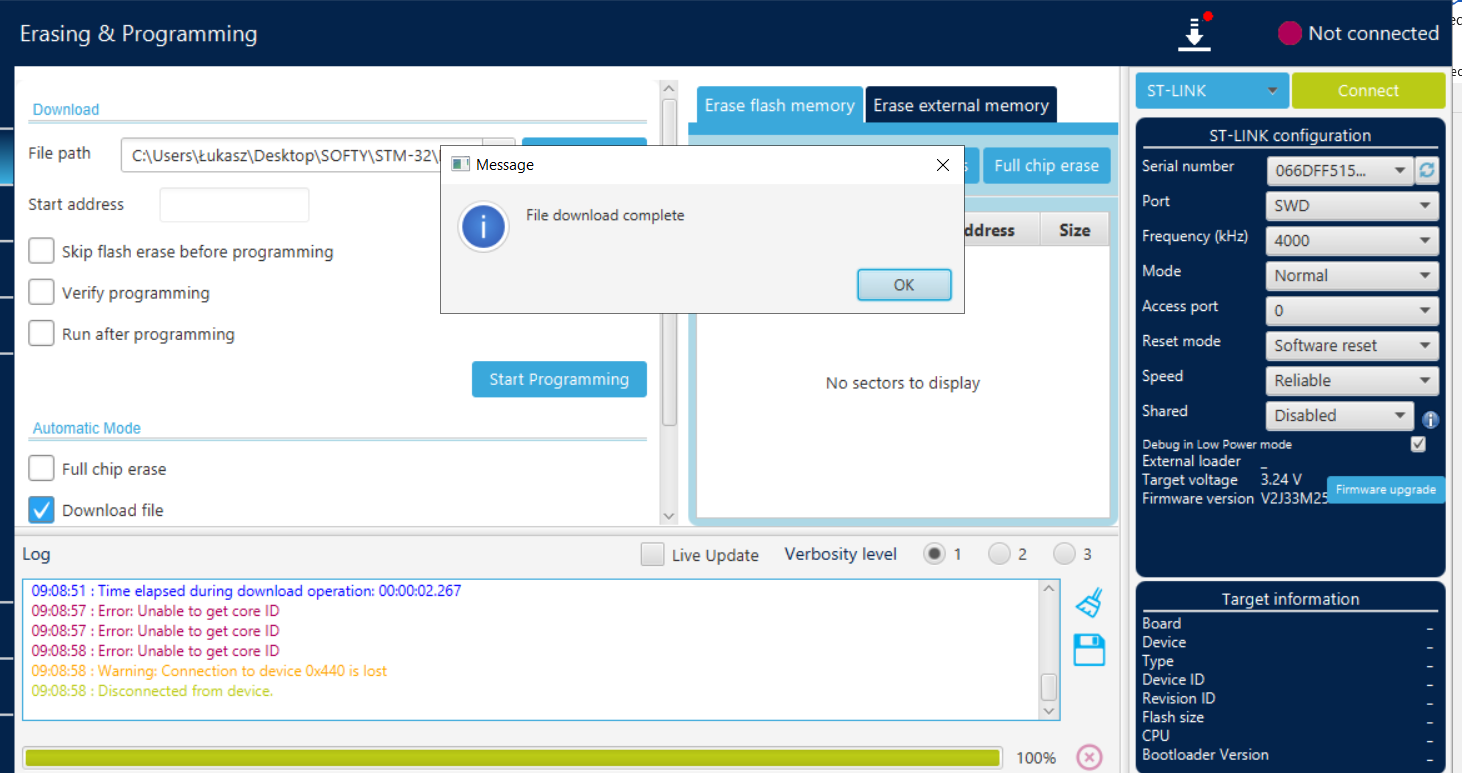

  6. After a successful programming operation you should get the message "File download complete"
  7. Click on "Disconnect"
  8. Your CPU Board P-LPU1 has been programmed.
