Replacing the power switch [P1 retro, P2 hexaline]

Replacing the power switch [P1 retro, P2 hexaline]

  1. Tools needed:

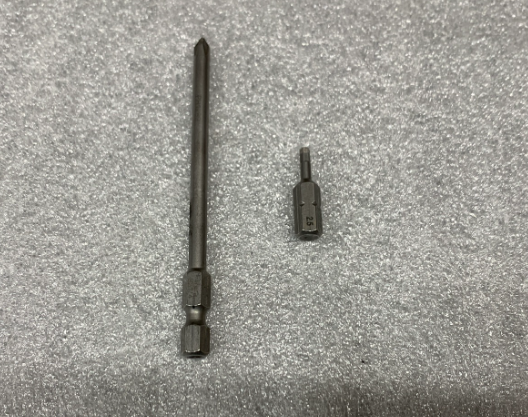

    1. Phillips screwdriver
    2. hex bit up to 2.5mm

  2. Steps:

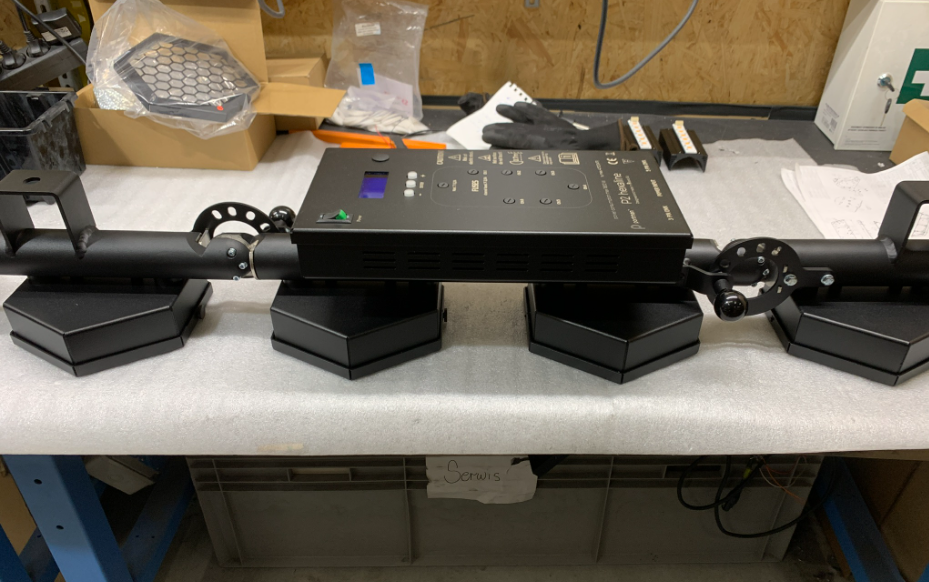

    1. Arrange the device with the pixels facing downward

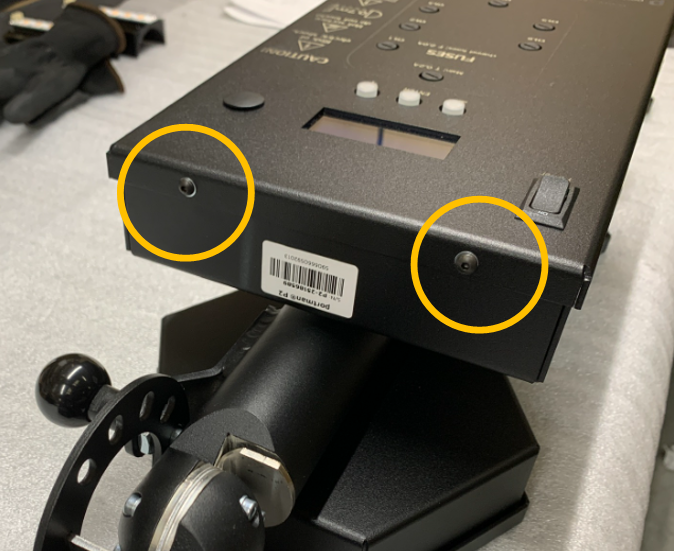

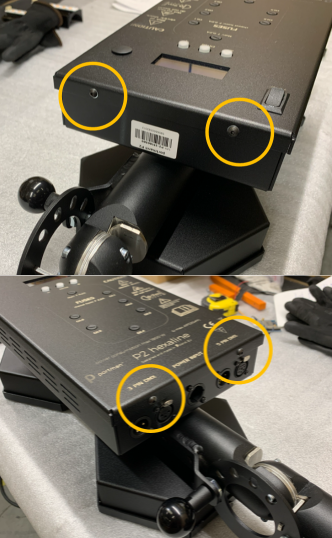

    2. Using a 2.5mm hex bit, unscrew the electronics cover

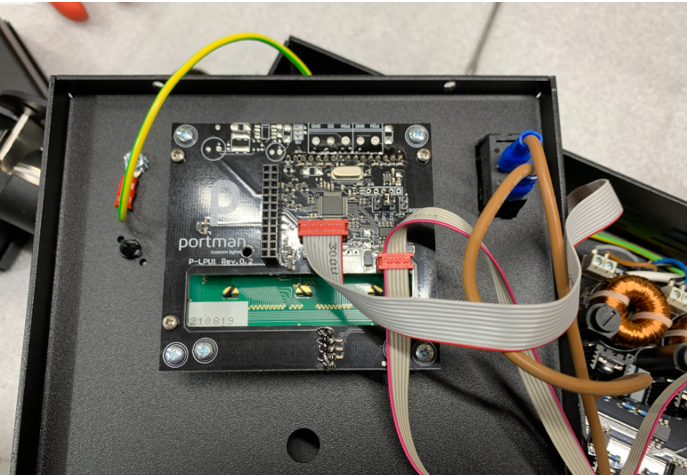

    3. Open the electronics cover, rotate it and place it on the electronics box

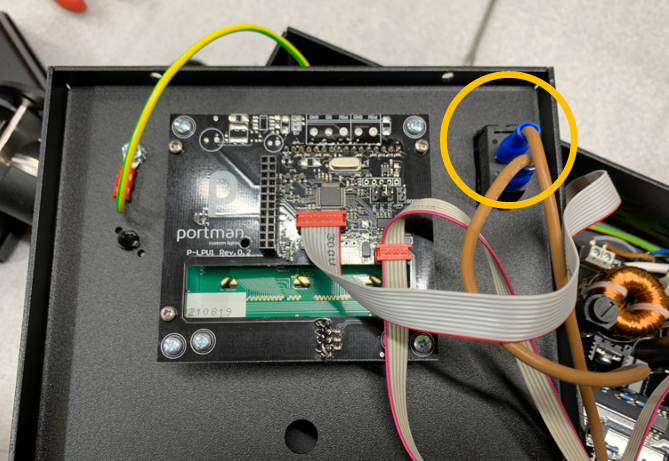

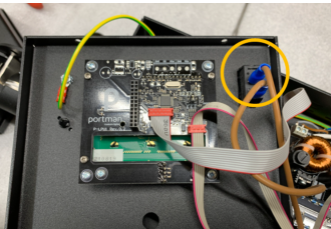

    4. Unplug the two L wires from the switch rocker

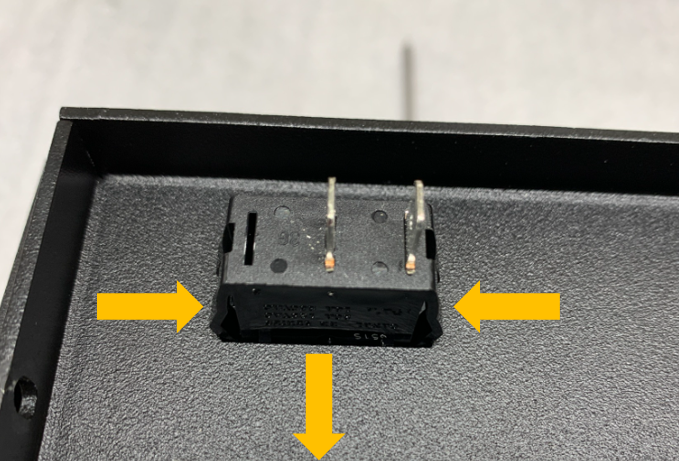

    5. Squeeze and push out the switch rocker switch

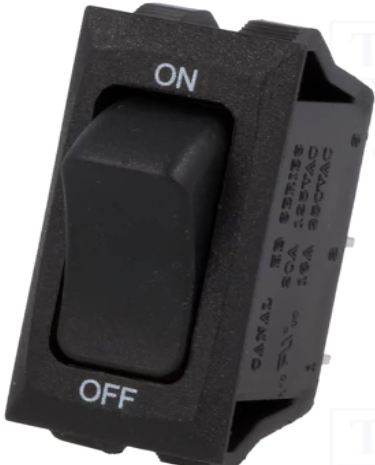

    6. Insert and push the new switch rocker from the outside of the electronics cover.
    7. Insert the two L wires onto the ends of the switch rocker switch
    8. Close the electronics box with the cover

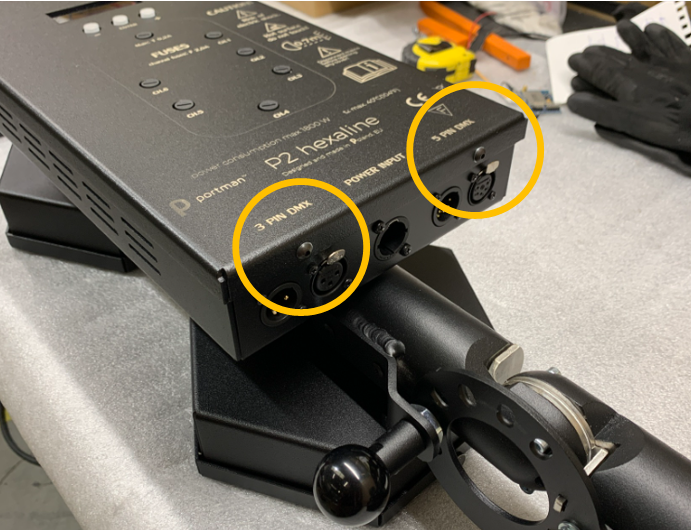

    9. Tighten the electronics box cover with four screws using a 2.5mm hex bit
