W-DMX installation [MANTIS, S-TRIBE, P1 EVO, P2 EVO, P3 EVO, EVO ELEMENT, AMULET]

W-DMX installation [MANTIS, S-TRIBE, P1 EVO, P2 EVO, P3 EVO, EVO ELEMENT, AMULET]

  1. Check if you have all parts required for installation. Portman W-DMX KIT contains :

    1. Antena
    2. W-DMX PCB
    3. Connecting wire
    4. 2 x M2,5 Screw with countersunk head (black)
    5. 2 x M2,5 Washer
    6. 2 x M2,5 Nut

  2. Proper for installation:

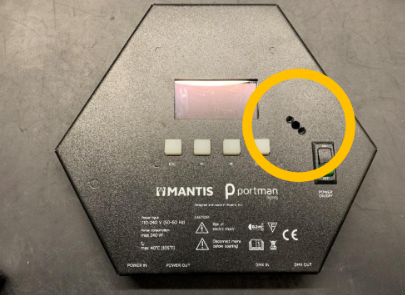

    1. You need Electronics Box Cover with holes specially made for the W-DMX antenna assembly.
    2. You can order new luminaires with holes ready for W-DMX. If you have old luminaires without that feature, you can purchase new covers with holes from us.
    3. Prepare your luminaires for repair. Be sure the luminaire is not connected to mains power before starting any operation on it.

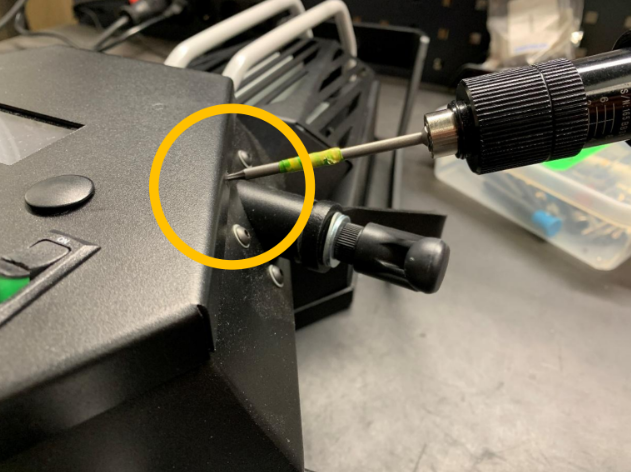

    4. Unscrew the back cover of the electronic box.
    5. Unplug the power cables from the switch and ribbon cables from the LPU board.

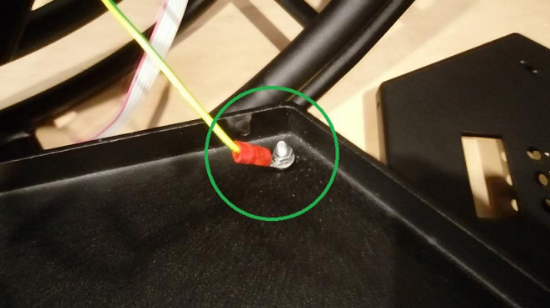

    6. Unscrew the PE cable with socket wrench.

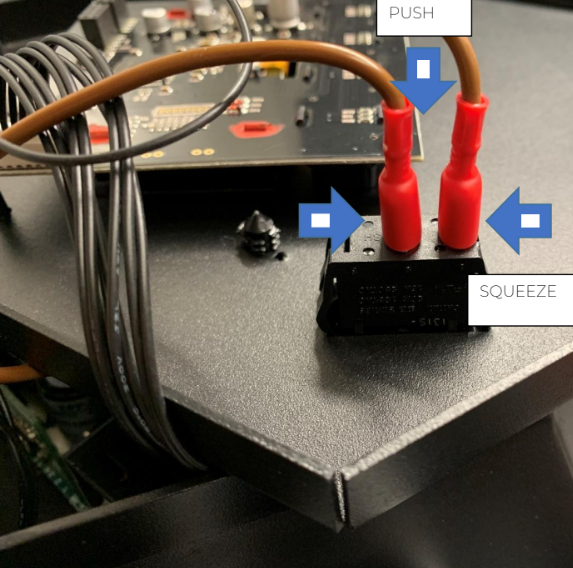

    7. Remove the Power Switch. Squeeze the pawls on the sides and push it out.
    8. Put something soft on your worktable to prevent scratching the cover. Some kind of tower, bubble foil or foam will be good.

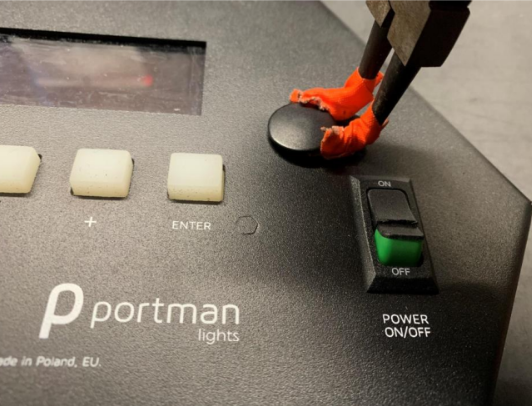

    9. Take your Cover with W-DMX holes. Pry up the cap with a rubber tool so as not to scratch the cover.

  3. WDMX installation:

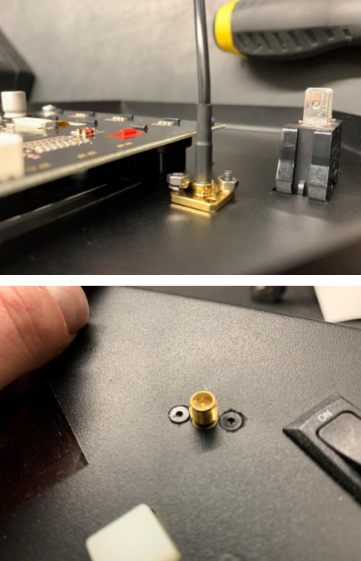

    1. Mount the Connection wire. Put the golden socket into the cover from the inner side. Put the screw into holes from the outer side. Screws should go through the golden socket holes. Put the washers on threads. Screw the Nuts on. Use just your fingers to tight them so all things won’t fall apart. Tighten the screws with 1,5mm hex key.

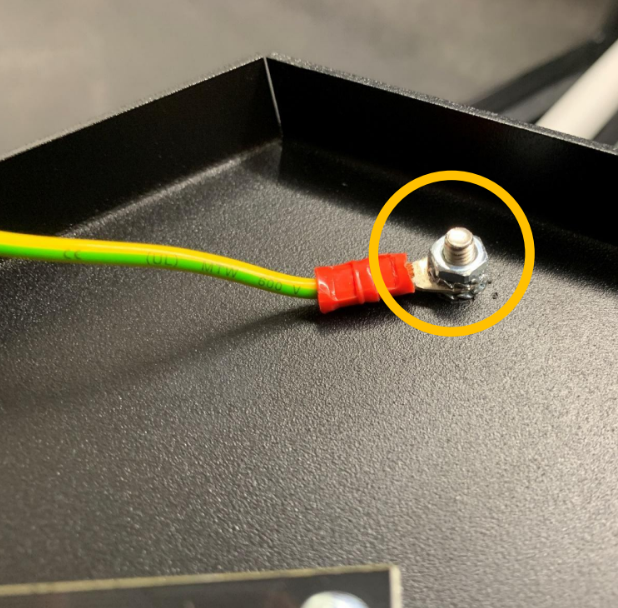

    2. Use M4 toothed washer and nut to mount the PE cable. Put in exact order: first washer, cable, second washer and then the nut.

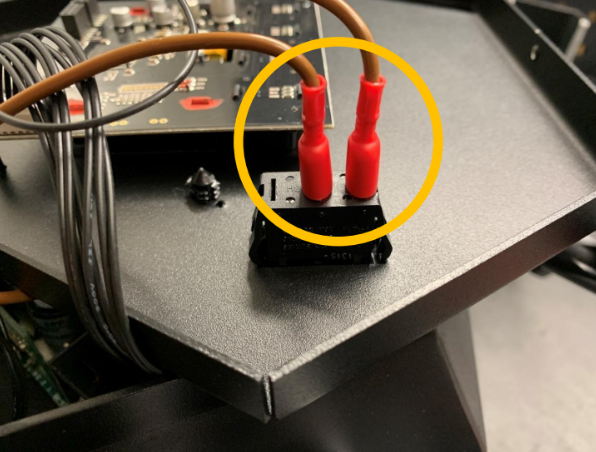

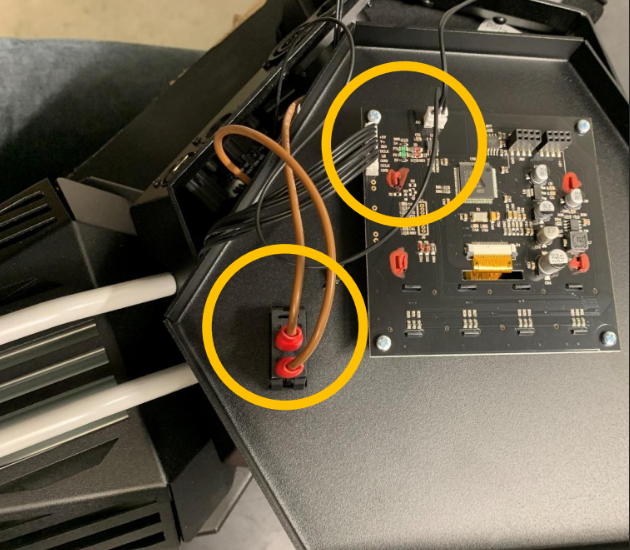

    3. Plug in the brown power cables.

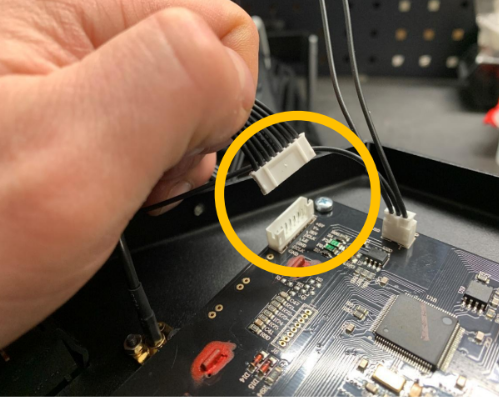

    4. Plug the ribbon cables to LPU board. The pin and the hole should match together.

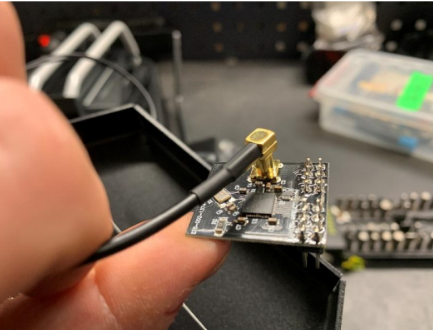

    5. Plug the Connection wire info W-DMX PCB

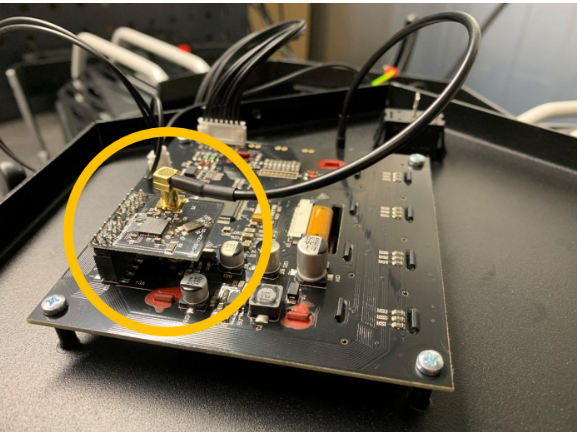

    6. Plug the W-DMX PCB into a socket on the LPU board.
    7. Close the Cover and screw it.

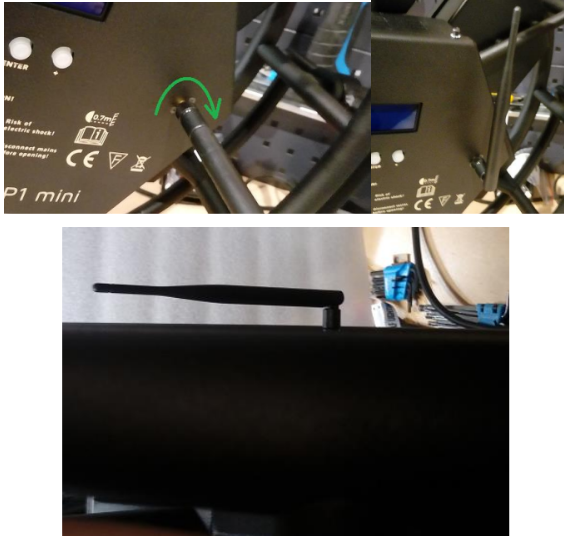

    8. You need to screw the antenna to use the W-DMX. Bend it and aim it to the top after screwing.
