Wire replacement in Pixel 3,4 [P2 EVO]

Wire replacement in Pixel 3,4 [P2 EVO]

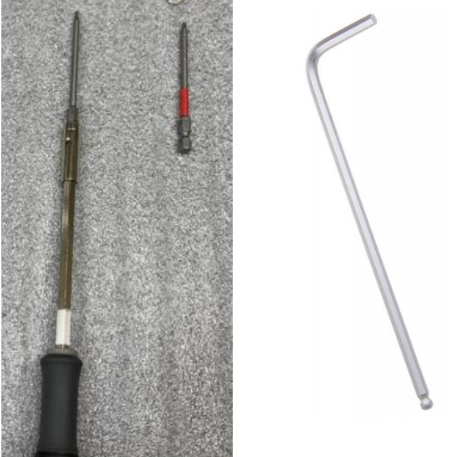

  1. Tools neded:

    1. 2.5mm Allen spanner, imbus 2,5mm
    2. 2mm Allen spanner, imbus 2mm

  1. Wire replacement:

    1. Place P2EVO with the pixels facing up.

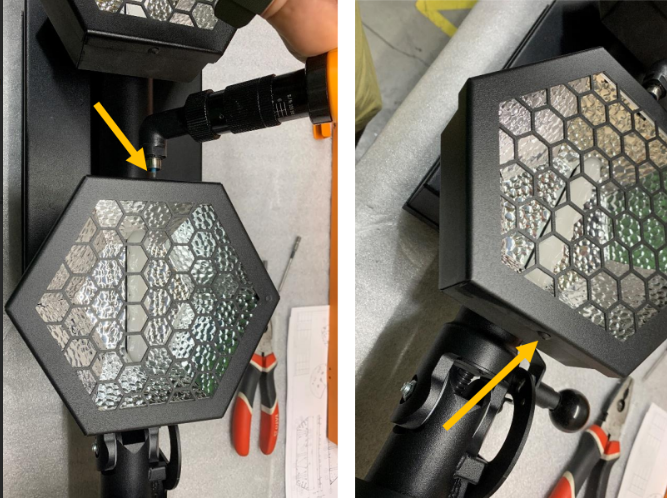

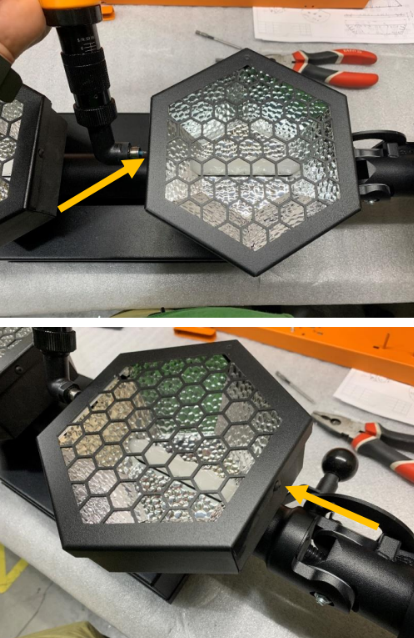

    2. Using a 2.5mm Allen wrench, unscrew the pixel cover from the left and right sides, gently open the cover and set it aside.

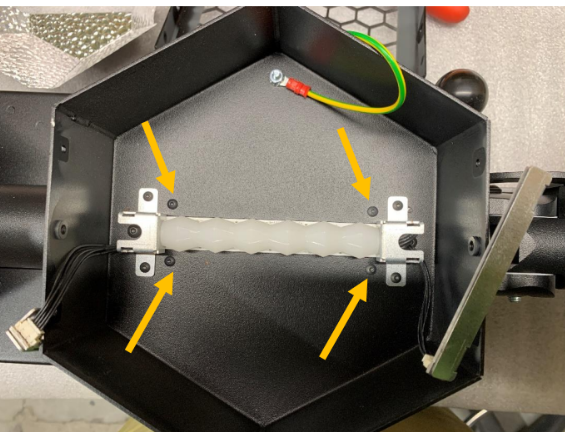

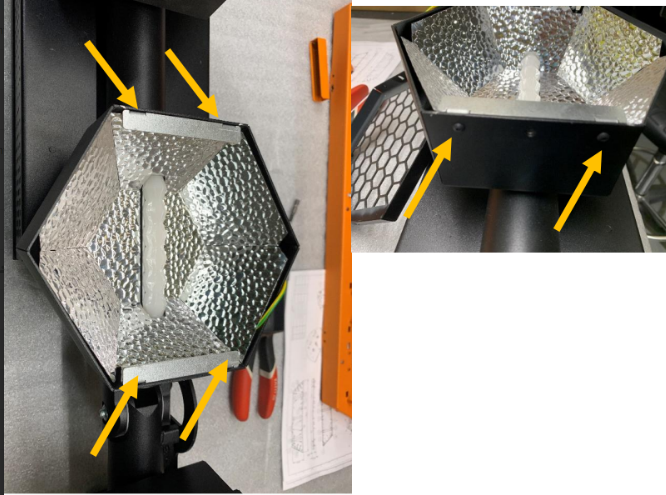

    3. Using a 2mm Allen wrench, remove the 4 RGBW 12 mounting screws on the left and right sides

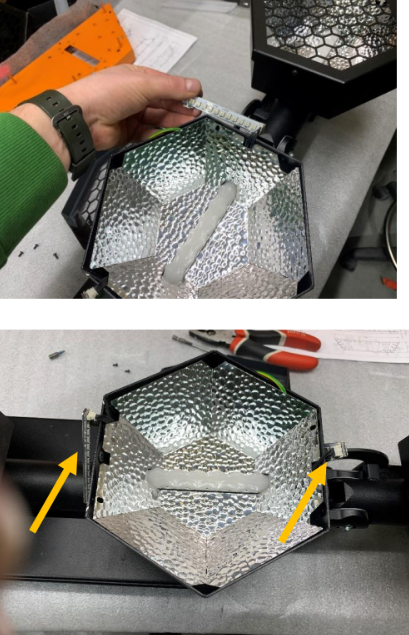

    4. Remove the left and right RGBW 12 strips outside the pixel box.

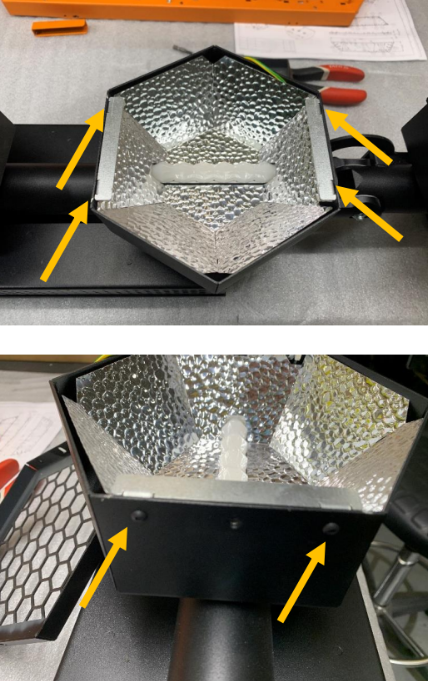

    5. Gently bend the reflector from the left and right side of the pixel and lift it out of the pixel.

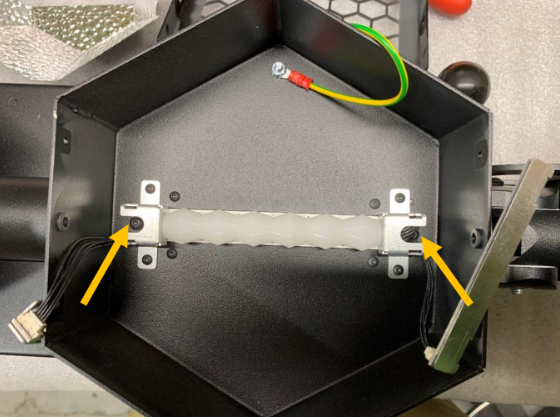

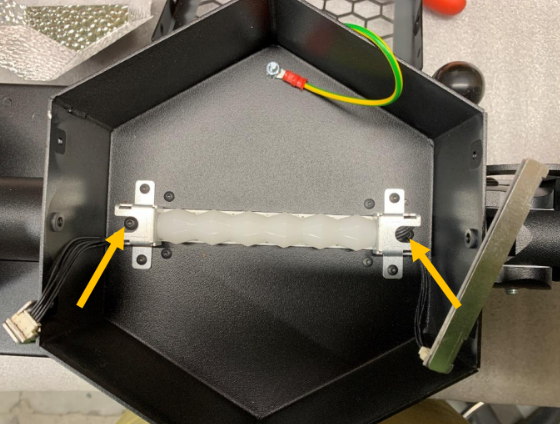

    6. Using a 2mm screwdriver, unscrew the blender handles.

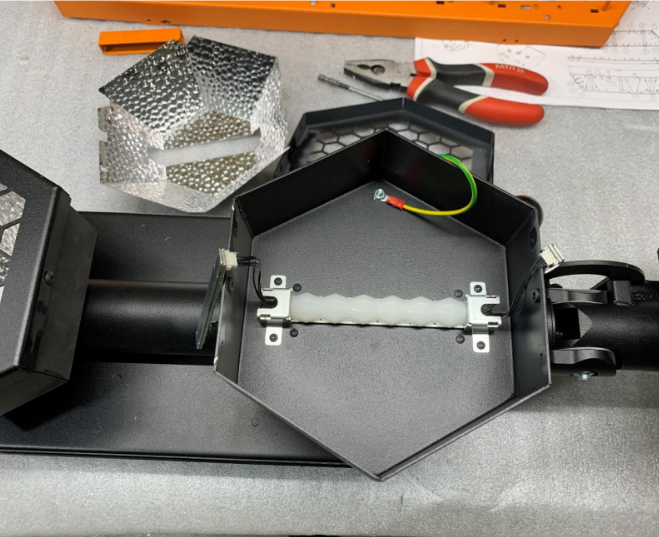

    7. Remove the blender along with the handles from the pixel can.

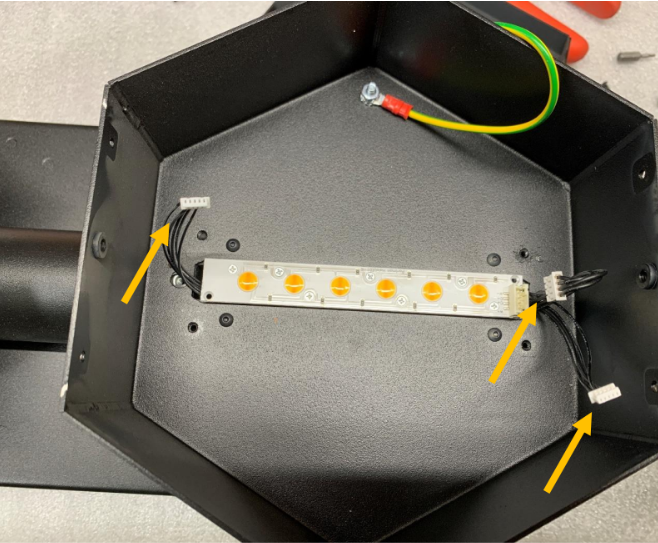

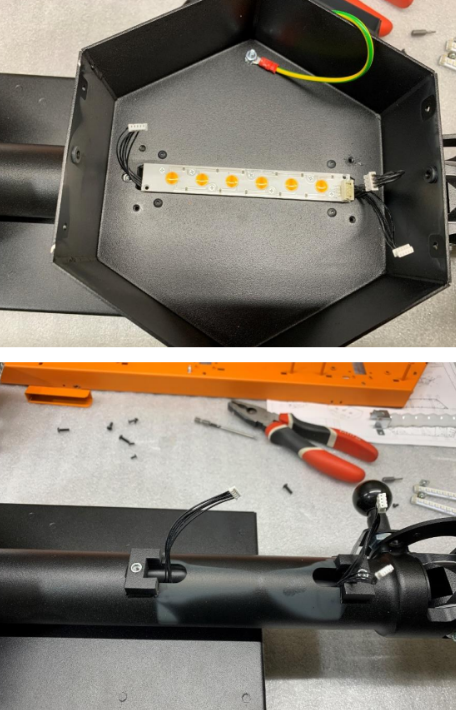

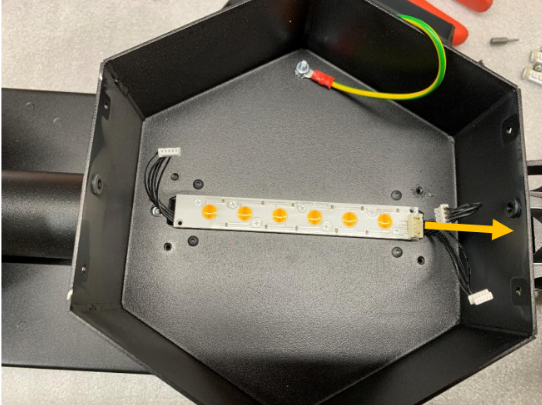

    8. Unplug the wires from the RGBW12 and Halo Led 1-6 strips (mark the defective wire with tape, for example)

    9. Remove with a 2.5mm screwdriver the screws holding the pixel box
    10. Lift the can, pull out the wires and put the can aside.
    11. Turn the P2 EVO over so that the electronics box is facing up.

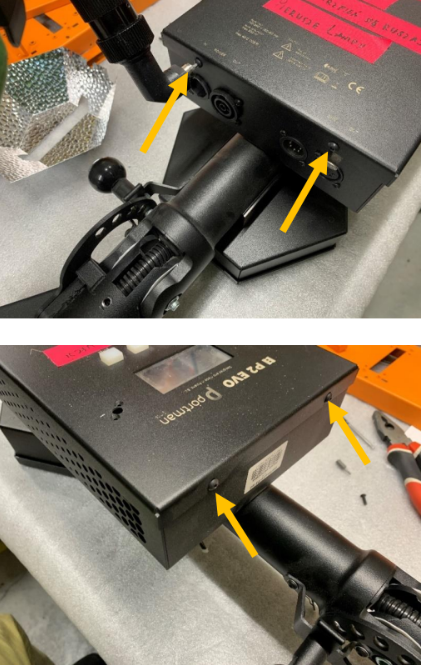

    12. Using a 2.4mm screwdriver, remove the 4 screws holding the electronics cover.

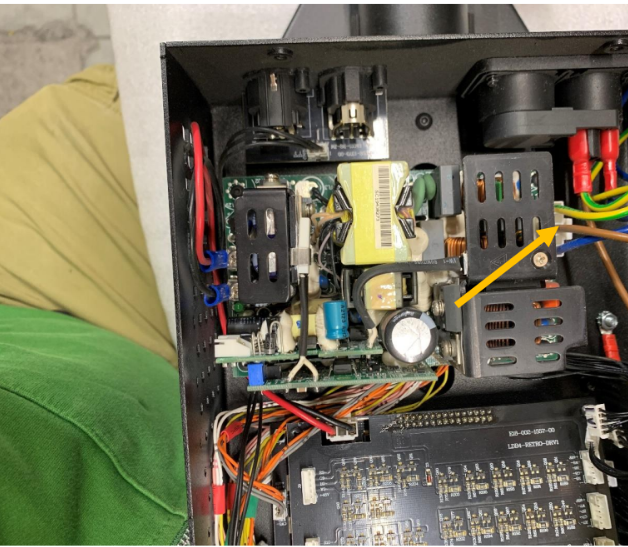

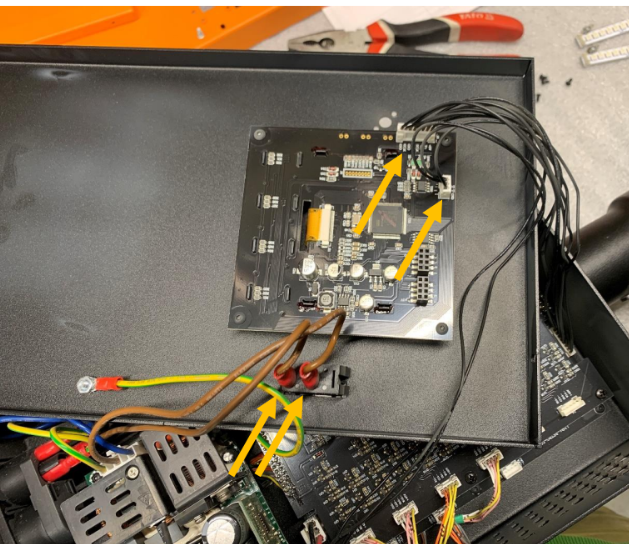

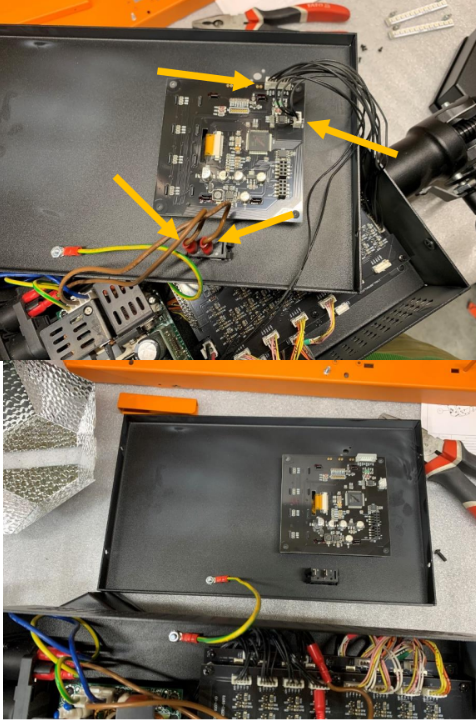

    13. Remove and invert the electronics cover. Unplug the L wires, the wire connecting the LPUz LDB and the DMX wire.

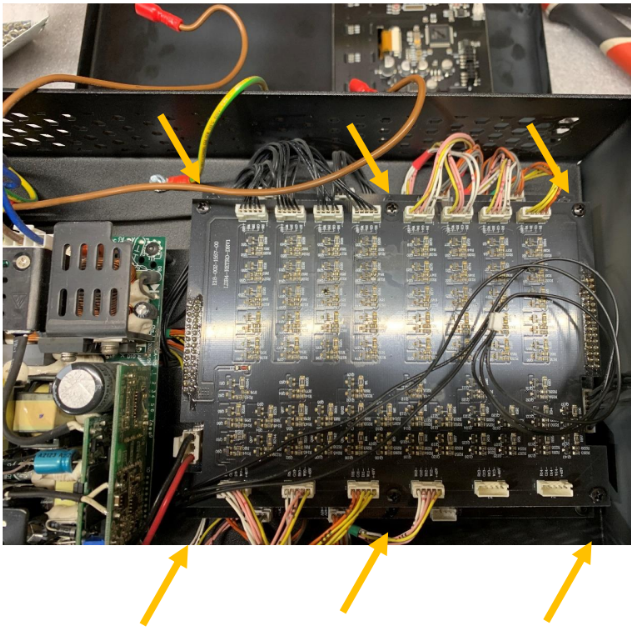

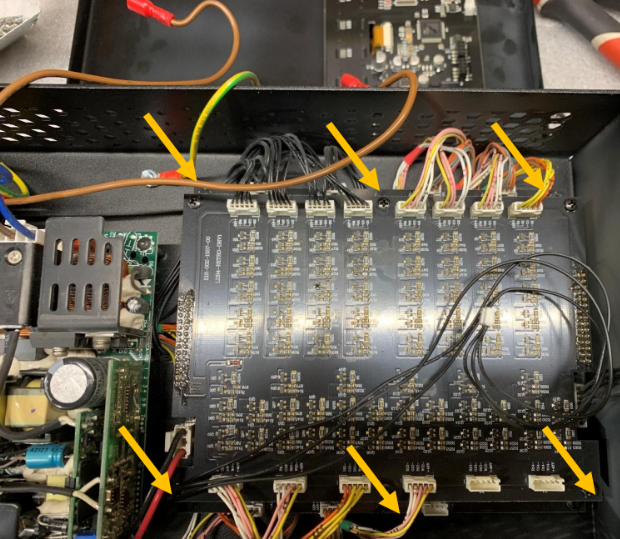

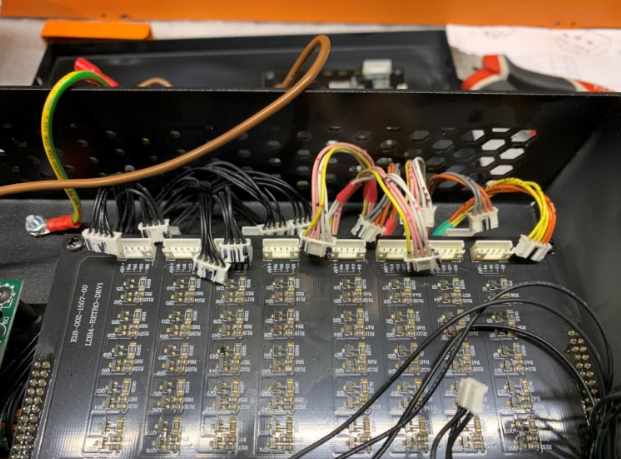

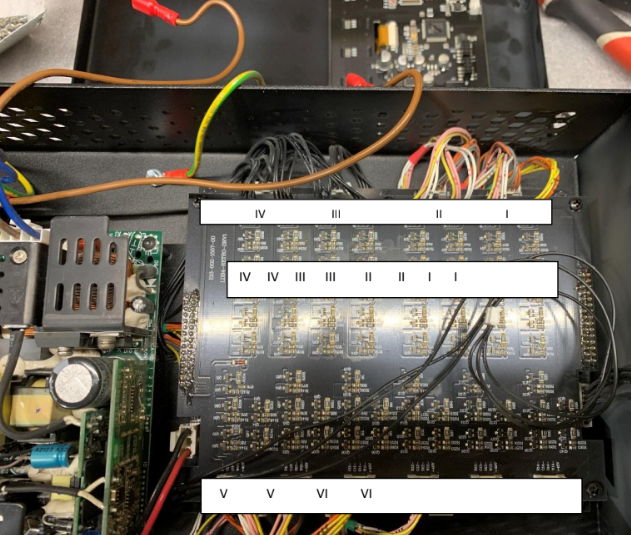

    14. Disconnect the RGBW and Halo Led wires from the LDB. When disconnecting the plugs, mark the order with a thin marker according to the order on the LDB.

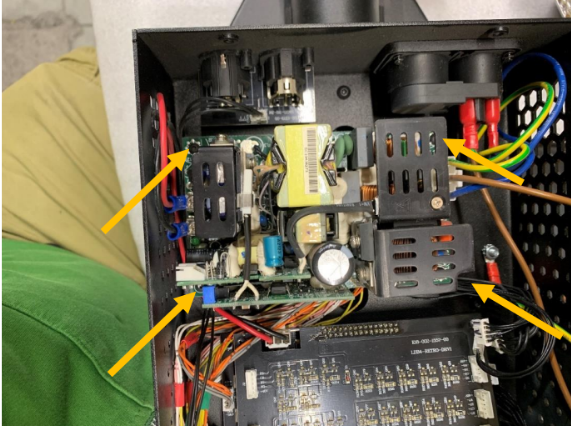

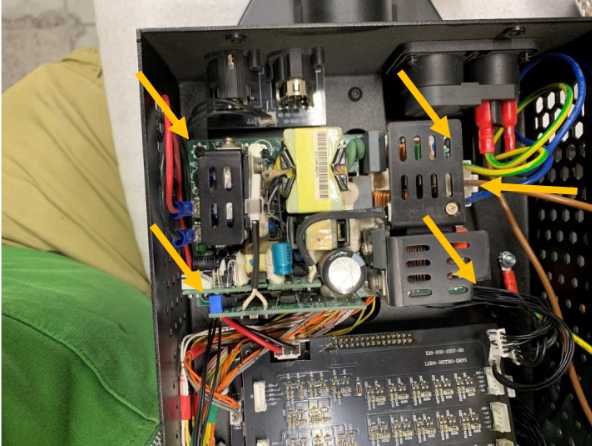

    15. Remove the screws holding the LDB and the power supply with a 2mm screwdriver.
    16. Unplug the power cord to the power supply. Remove the power supply and LDB from the electronics box.

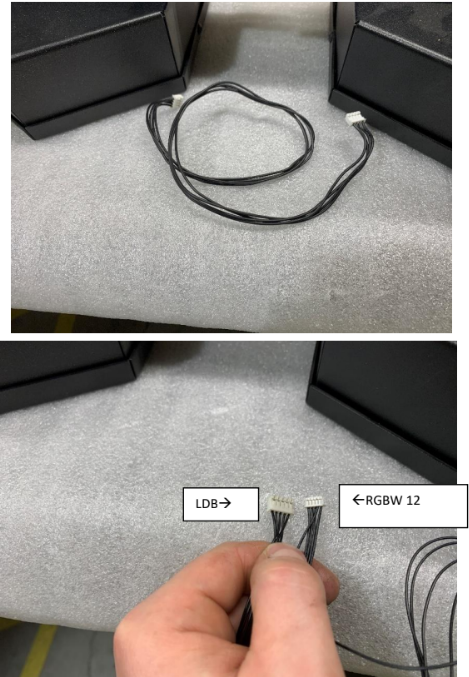

    17. Remove the defective RGBW 12- LDB cable. Insert a working cable. Remembering that the larger end is connected to the LDB side.
    18. Invert the P2 EVO so that the pixels face upward.
    19. Put the pixel can to the middle arm (remember to position the can so that the socket on Halo Led 1-6 is facing up the lamps. Thread the wires from the RGBW and Halo Led through the holes in the can.
    20. Tighten with a 2.5mm screwdriver the screws holding the pixel box

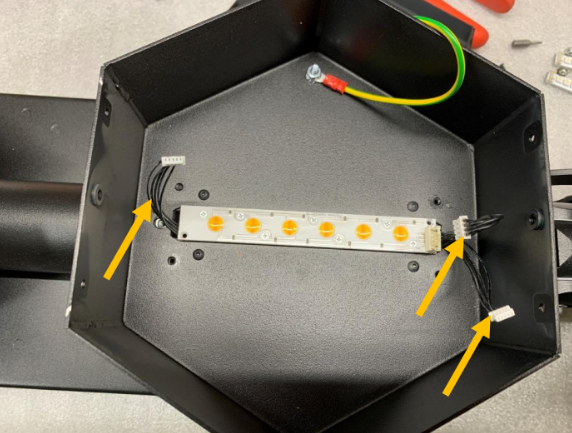

    21. Clip the wires from the RGBW12 and Halo Led strips 1-6
    22. Arrange the connected RGBW 12 sources on the sides of the can and place the reflector in the can,
    23. Place the RGBW 12 between the reflector and the pixel box and screw with a 2mm Allen.
    24. Put the pixel cover on the can and screw it on with a 2.5mm Allen.
    25. Flip the P2 EVO over so that the pixels are facing down.
    26. Place the power supply and LDB in the box and screw it in place with a 2mm screwdriver. Take care not to pinch the wires from the sources under the LDB. Clip the power cord to the LDB.
    27. Pin the wires from the RGBW 12 and Halo Led 1-6 sources to the LDB according to the marker descriptions.
    28. Connect the L wires to the Switch Rocker, the LDB wire to the LPU, the DMX wire to the DMX jack on the LPU.
    29. Close the electronics cover and screw it on with a 2.5mm Allen.
